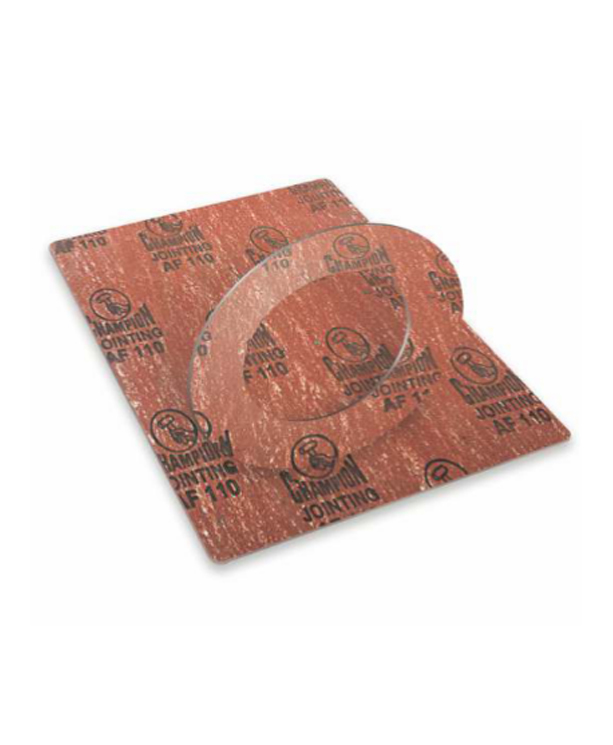

FIBRE JOINTING SHEETS - AF110 WATER

Champion Style AF 110 is a high quality and reliable, yet, cost-effective product manufactured from eco-friendly natural cellulosic fibers bonded with suitable mix of elastomers.
Champion AF-110 Sheets are available in non-metallic and also in metallic option (with wire reinforcement). This grade is produced in brown color.

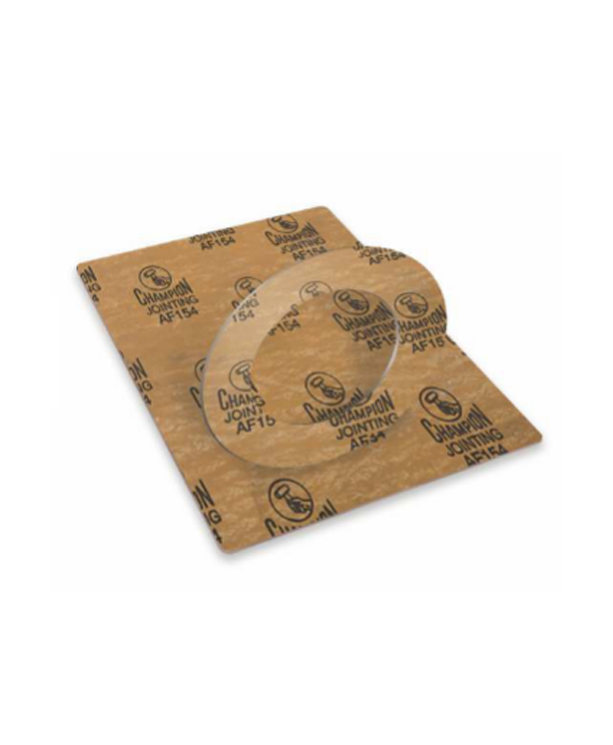

FIBRE JOINTING SHEETS - AF 154

Champion Jointing Style AF 154 Super is special purpose BS7531 Grade-X asbestos-free (AF) Jointing sheet. It is blend of superior heat resisting compressed aramid fibres bonded with a combination of other functional fibres along with nitrile elastomeric binders. Champion Jointing Style AF 154 Sheets are available in non-metallic and also in metallic option (with wire re-inforcement and anti-stick properties- which minimizes adhesion of the gasket to flange surfaces even at elevated temperatures, resulting in reduced removal time). This grade is produced in yellow color.

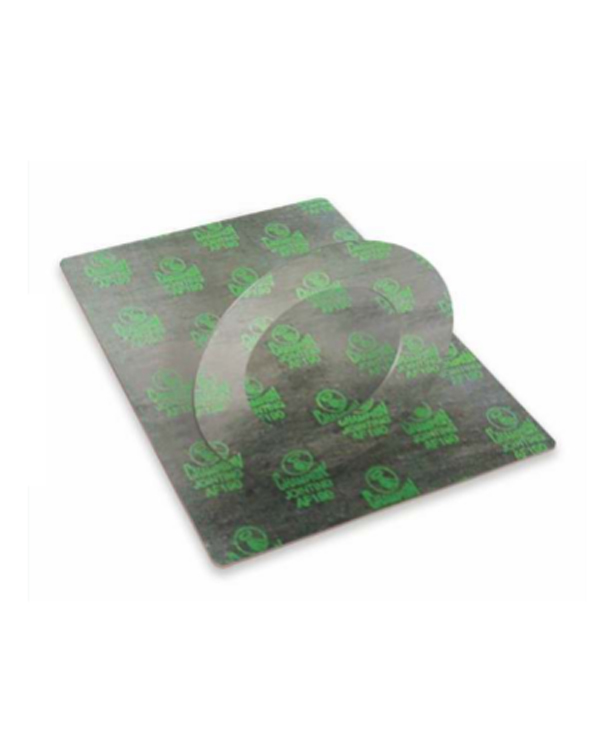

FIBRE JOINTING SHEETS - AF 190

Champion Style AF 190 Performance Gasket is a premium grade high temperature, pressure resistance compressed asbestos-free (AF) universal jointing sheet consisting of premium grade of aramid fibers, heat dissipating graphite, carbon bonded with HNBR elastomers, additives and specialty chemicals. Champion Style AF 190 Performance Gasket are available in non-metallic and also in metallic option (with wire re-inforcement and anti-stick properties). This grade is produced in dark grey / black color.

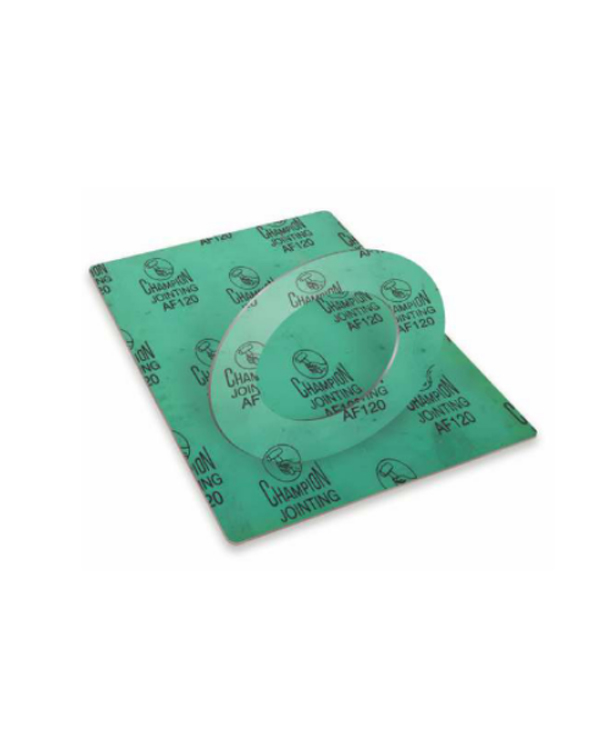

-FIBRE JOINTING SHEETS - AF120 STEAM

Champion Style AF 120 Gasket is a general purpose, BS-7531 Grade-Y Asbestos-Free (AF) Jointing sheet. It is comprised of compressed aramid fibres and bonded with a combination of other functional fibres with a nitrile rubber binder to create a matrix of stability Champion Style AF 120 Gasket are available in Non-Metallic and metallic option (with wire re-inforcement & anti-stick properties). This gasket is manufactured in green color.

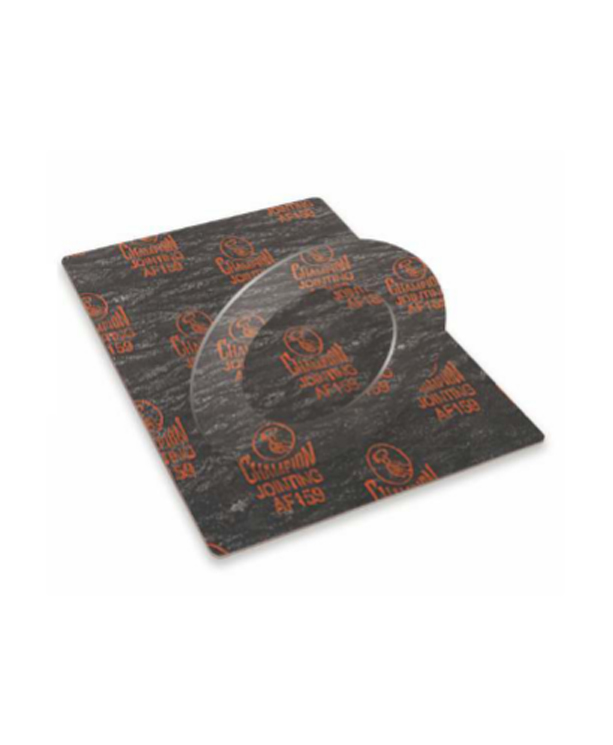

FIBRE JOINTING SHEETS - AF 159

Champion Jointing Style AF 159 Oil is special purpose BS7531 Grade-X Asbestos-Free(AF) Jointing sheet. It is blend of superior heat resisting compressed aramid fibres bonded with a combination of functional fibres along with nitrile elastomeric binders (NBR). Champion AF 159 Sheets are available in non-metallic and also in metallic option (with wire re-inforcement and anti-stick properties- which minimizes adhesion of the gasket to flange surfaces even at elevated temperatures, resulting in reduced removal time). This grade is produced in Grey color.

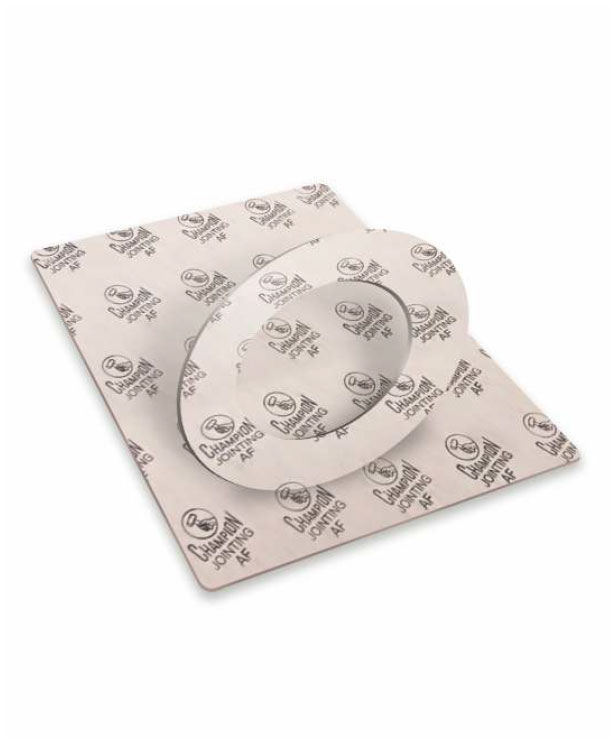

FIBRE JOINTING SHEETS - AF K11

Champion Jointing Style AF K11 is a superior performance, high dielectric strength compressed asbestos-free (AF) universal jointing sheet consisting of premium grade of synthetic aramid fibers, with special performance elastomers, additives and specialty chemicals. The materials are specially formulated to act as insulator or barrier to flow of electrons from one flange to another. Champion Jointing AF K11 Sheets are available in non-metallic (i.e. without wire reinforced) This grade is produced in cream / off white. Applications

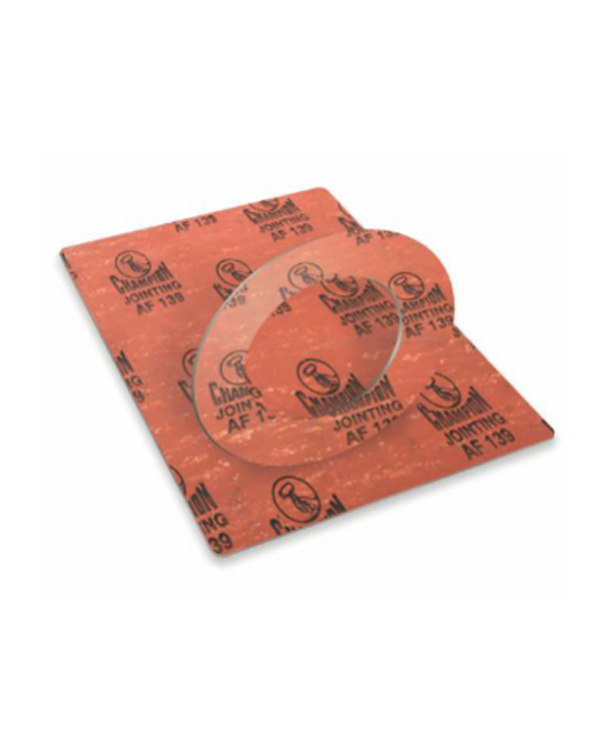

FIBRE JOINTING SHEETS - AF 139

Champion Jointing Style AF 139 is higher performance BS7531 Grade-X Asbestos-Free (AF) Jointing sheet. It is comprised of compressed aramid fibres and bonded with a combination of functional fibres with a nitrile rubber binder to create a matrix of stability for thermal and chemical medium service.
Champion AF 139 Sheets are available in non-metallic and also in metallic option (with wire re-inforcement and anti-stick properties- which minimizes adhesion of the gasket to flange surfaces even at elevated temperatures, resulting in reduced removal time). This grade is produced in orange color.

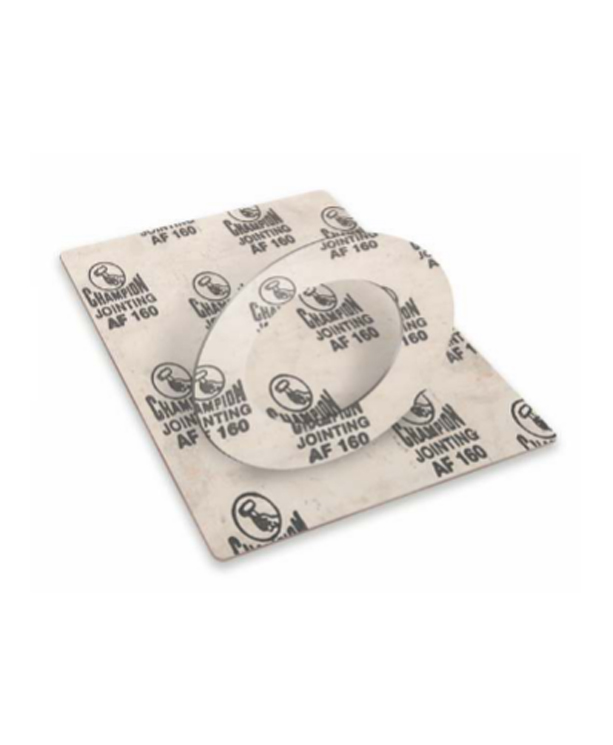

FIBRE JOINTING SHEETS - AF 160

Champion Style AF 160 Acid is special purpose BS7531 Grade-X Asbestos-Free (AF) Jointing sheet. This chemical resisting compressed fibre jointing sheet contains aramid fibres bonded with a special combination of binders consisting of synthetic elastomer (NBR) and additives. Champion Style AF 160 Acid gaskets are manufactured in non-metallic version (that is, without wiremesh reinforcement). This gasket is manufactured in off-white (cream) color.
