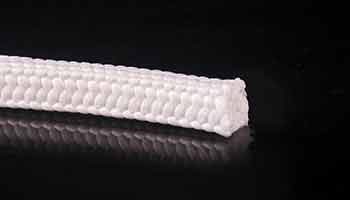

PERFORMANCE PACKINGS - STYLE - 1

FDA confirming food grade ePTFE packing for cleanliness
Product Description
CHAMPION DRYLONTM Style 1 Packing is an interlocked braided packing made of premium FDA approved food grade pure dry ePTFE fibre yarn. It is non-toxic, and contains no lubricants or additives.

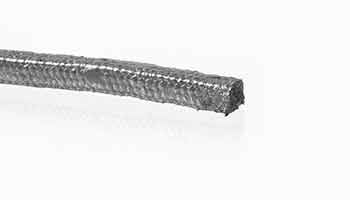

PERFORMANCE PACKINGS - STYLE - 38 & 40

High performance carbon fibre having excellent strength with low friction and heat dissipation.
Product Description
CHAMPION CARBOSUPERTM Style 38 Carbon Packing is manufactured from a high purity carbon filament yarn and thoroughly impregnated with special grade PTFE graphite mixture and a corrosion inhibitor. Available with a reinforcement of inconel wire as Style 40 Carbon Packing.

PERFORMANCE PACKINGS - STYLE - 6094

Acrylic based synthetic packing for general duties.
Product Description
CHAMPION Style 6094 PTFE Fibre Packing is an universal packing braided from strong Polyacrylonitrile (PAN) yarn. It is thoroughly impregnated with our proprietary PTFE-based dispersion and then treated with special lubricants to enhance overall performance.

PERFORMANCE PACKINGS - STYLE - 2

FDA confirming food grade ePTFE packing for cleanliness
Product Description
CHAMPION NEOFLON ™ Style 2 Packing is a high-purity white packing, cross-plaited from tough thermally stable PTFE fibre yarn. This yarn is impregnated with densified particles of PTFE to generate extra lubrication. The packing is then cleansed of all organic matter and volatile content.

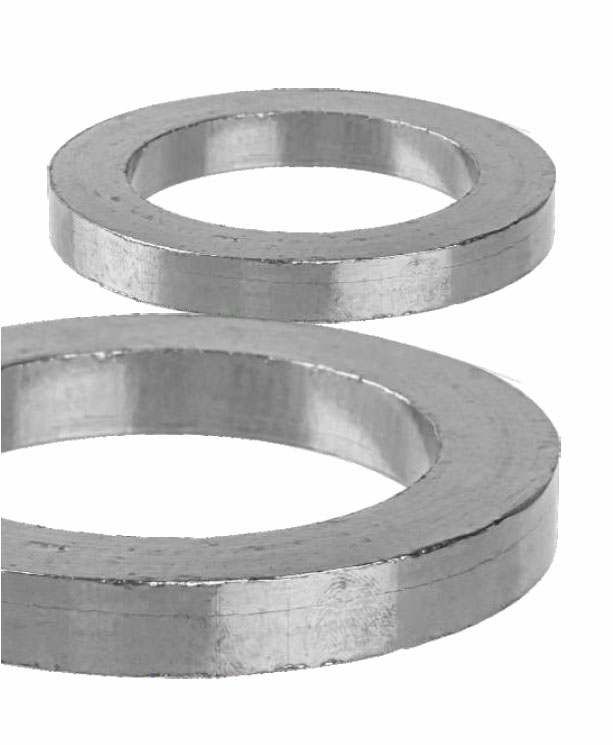

PERFORMANCE PACKINGS - STYLE - 660

High purity moulded graphite sealing rings
Product Description
CHAMPION Style 600 High Purity Graphite Packing Rings is high performance packing braided from purity > 99% carbon with low ash, sulphur, reachable chloride, fluoride content with no binders. These rings are available in metallic and non metallic.

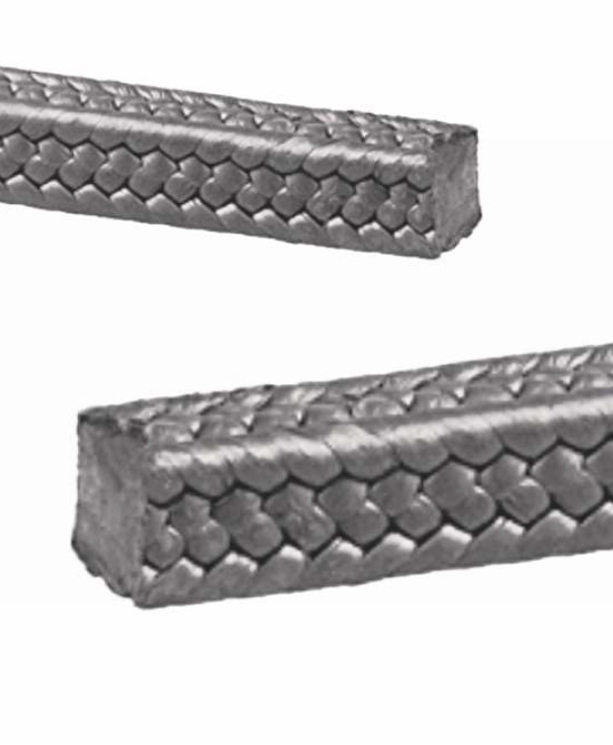

PERFORMANCE PACKINGS - STYLE - 36

High performance ePTFE/graphite having excellent resiliency and chemical resistance.
Product Description
CHAMPION GRAFLON ™ Style 36 ePTFE Graphite Packing is manufactured from premium yarn which combines the benefits of ePTFE, graphite and high temperature lubricants. An ideal balance between density, resilience, strength and durability is ensured by this cross-plaited packing.

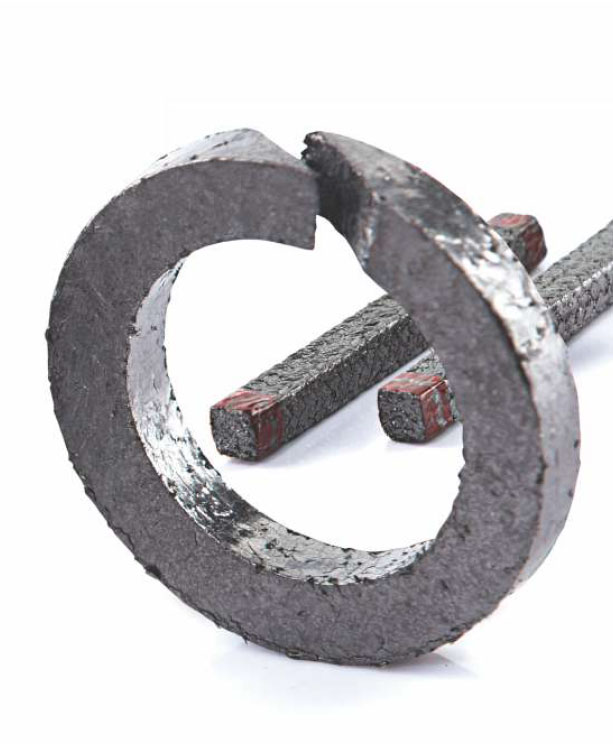

REINFORCED (METALLIC) - Style 668 M

High quality carbon yarn for stuffing box with excellent mechanical strength
Product Description
Champion Style 668 Graphite Reinforced (Metallic) Packing is manufactured from high purity flexible graphite that is diagonal braided of pure, expanded flexible graphite ribbons, reinforced with fine metallic wires. It is treated with corrosion inhibitor. Proven in high temperature, high- pressure steam service capability.
Easy installation and extrusion resistance.
Proper dissipation of heat due to good thermal conductance.
Excellent sealing performance under extreme conditions.
High chemical resistance & Corrosion inhibitor safeguards metallic interfaces from galvanic corrosion.
Single wire reinforcement enhances the mechanical strength of the packing.
