Combination Units

Correct compressed air preparation means using a filter regulator lubricator (FRL) in the correct order. Combination FRL assemblies or maintenance units allow your choice of units to be assembled. IMI Norgren box sets are the ideal assembly - a filter/regulator, lubricator, shut-off valve, gauge and mounting brackets fully assembled.

Lubricators

We offer two types of lubricator, oil-fog for those high demand applications and micro-fog for those long distance or intricate circuits. Any pneumatic actuator, valve or device downstream will generally benefit from correct lubrication offering longer life and reducing total cost of ownership.

FRL Control Valves

Manual Control Valves can be used to isolate the mains pressure whilst safely exhausting the secondary pressure to atmosphere, typically during maintenance periods. The valve can be locked in the closed position. A electrical version, a dump valve, offers the same function whilst a soft start version offers additional functionality that can support further machine safety. Both the standard dump and soft start dump valves are available with pneumatic (pilot) actuation.

Air Preparation Spares

Our service kits offer all the required parts to service and maintain your air preparation equipment to extend the life of your compressed air circuit whilst maintaining optimum performance.

Filter Regulators

The IMI Norgren filter regulator unit is our most popular single compressed air preparation unit. The filter regulator combines accurate pressure adjustment with bulk water (moisture) and particle removal (5 or 40 microns rating) in one unit. This benefits you by saving space and pneumatic connections for the same or improved performance.

Pressure Regulators

We offer two types of lubricator, oil-fog for those high demand applications and micro-fog for those long distance or intricate circuits. Any pneumatic actuator, valve or device downstream will generally benefit from correct lubrication offering longer life and reducing total cost of ownership.

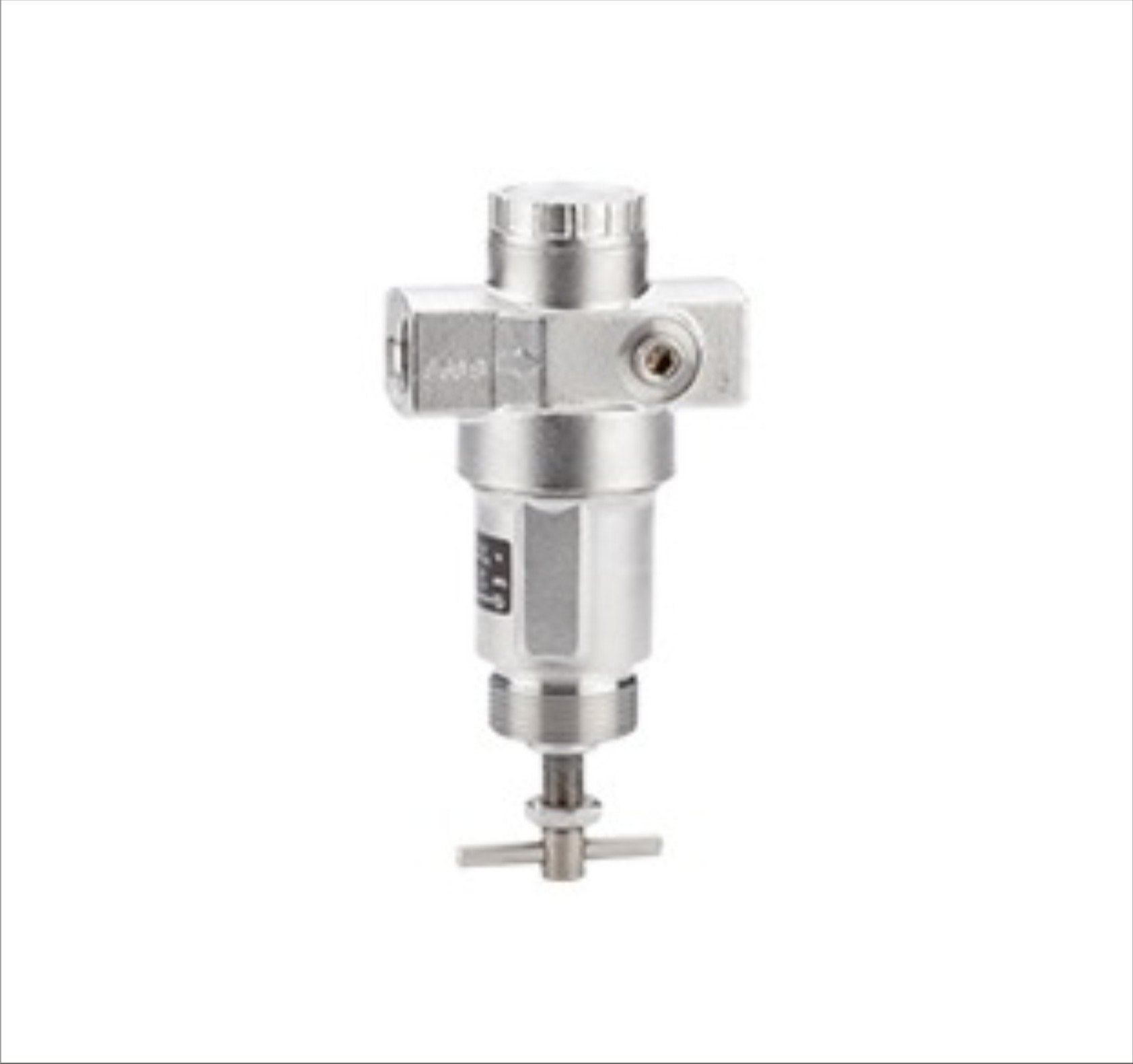

Stainless Steel

Stainless steel air preparation offers a high level of corrosion resistance. Where more specialised materials are preferred - our stainless steel air preparation ranges meet this requirement often meeting the requirements of NACE MR-0175/2002 and can be used in oil field, offshore and other applications. Our range includes stainless steel filters, stainless steel filter regulators, stainless steel pressure regulators and stainless steel lubricators.

CLICK HERE TO CONTACT US FOR YOUR REQUIREMENTS.

Filters

We offer three types of compressed air filters depending on the air quality required. General purpose filters to remove water droplets and particles to 5 or 40 micron rating. Pureaire oil removal filters to remove oil droplets or fine particle removal to 0.01 microns and Ultraire oil vapour removal filters to remove oil vapours.

Pressure Relief Valves

Pressure relief valves (PRV) are designed to help protect compressed air systems from over pressurisation for the safety of personnel and equipment. We offer standard inline compressed air pressure relief valves as well as pop type pressure relief valves.

Air Preparation Accessories

For a comprehensive range of accessories including brackets and connecting clamps to best suit your application needs.
