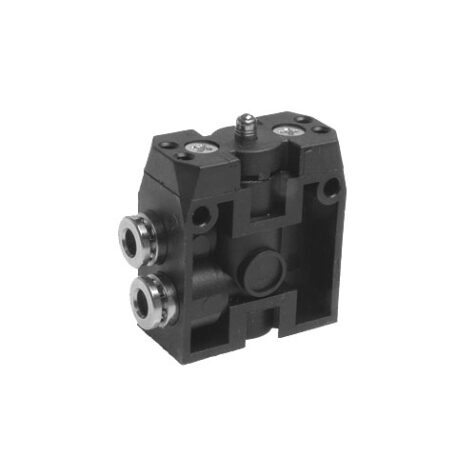

Valve SERIES 104

The 104 valve series was designed to provide an economical product to be used alongside the 105 version, reducing overall dimensions and making it easier for the end customer to use. The
main feature is the option to choose between the version with lateral or rear pneumatic connections, made using a built-in quick coupling for ø4 pipe.
The valves are available in 2- and 3-way versions, normally open or closed, 5-way and 5-way 3-position with open centres and pressurised centres.
The 5-way versions consist of two 3-way valves placed side by side with a common power supply. 1 The actuators that can be used with this valve are push-button (digital, protruding or emergency), selector (long, short or
key lever), lever (roller lever or one-way lever) and pneumatic.
It is possible to use electrical contact elements, normally open or closed, alongside the 2- and 3-way valves.

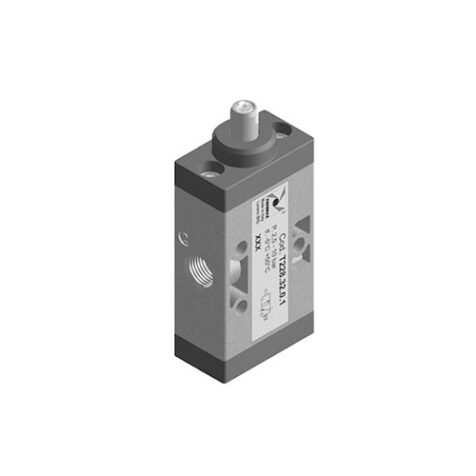

T200 SERIES

The T200 series, consist of a broad range of valves with various type of actuation. The connections for this series are from G 1/8″ to G 1/4″. the main components constituting the valves of the tecno228 series are manufactured with high performance technopolymer.
The use of technopolymer has resulted in a light weight product which can be offered to the market at very interesting prices.
The T228 series, is manufactured with 1/8” connections, 3 and 5 ways function, mechanical or pneumatically operated, monostable spring or pneumatic return, bistable and in 5 ways 3 positions version with closed, open and pressured centres.
This series is completely interchangable with the standard 228 series (with alluminium body).
The T224 valves and solenoid valves series, are manufactured with 1/4” connections. Depending on version and actuation (manual, pneumatic, or electrical), and self aligning (pneu – elect, spring) 3/2, 5/2 and 5/3 ways function, (monostable), (bistable).
The gang mounted solenoid valves are available with the traditional manifold obtained from bored square bar of series 600 and with the extruded aluminium base allowing a unic inlet port conveying the exhausts. The base is also prearranged to be fixed on DIN 46277/3 guide.

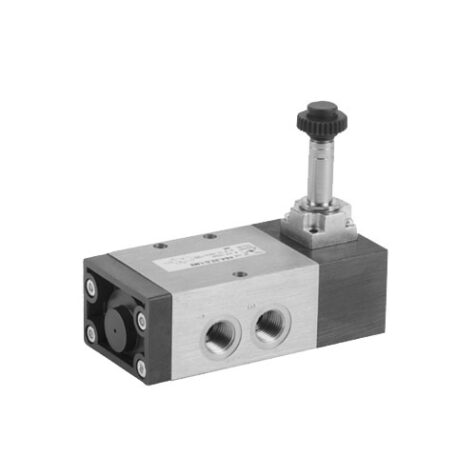

400 SERIES

These are 2 stage valves actuated electro-pneumatically. A serie 300 directly operated solenoid valve actuates pneumatically the principal power distributor.
This integrated system allows configurations of systems requiring very little space.
The pilot air is normally taken from the inlet port (autofeed) and the only actuating signal is electric.
The range of the solenoid valves, as far as dimensions and mechanical construction, is similar to series 200.
We have therefore solenoid valves G 1/8″, G 1/4″, G 1/2″ and G 1″ with identical pneumatic characteristics that are, however, actuated electrically.
They have a balanced spool, insentive to presence or absence of pressure. they are constructed in 3 and 5 way with 1 solenoid (monostable) or 2 solenoids (bistable) and also 5 ways 3 positions with closed centres, open centres and pressured centres.
If should be noted that the autofeed of the electric pilot requires always inlet through port 1 and if a 3 ways normally open configuration is desired, it is necessary to switch the operators.
Solenoid valves G 1/8″ and G 1/4″ can be equipped with microsolenoids as well as standard solenoids and they can be mounted in line or in 90 degrees on valves.
Please note that while the microsolenoid can be mounted in any direction, standard solenoid requires mounting as inticated in the photographs and diagrams.

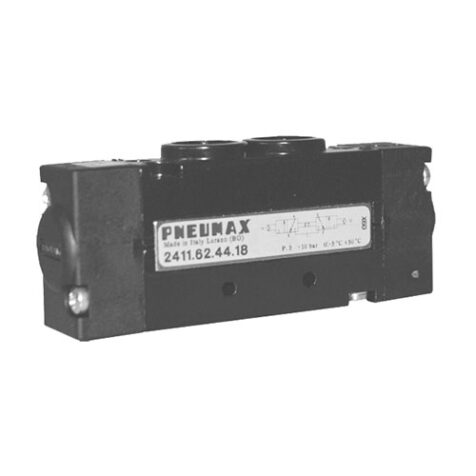

SERIES 2400 LINE-FLAT-VDMA

This solenoid valves series has been developed to meet requirements for electronically controlled pneumatic systems and / or serial control systems already used in all manufacturing sectors.
They have been designed to be easily assembled into groups or manifolds and include integral electrical connection to facilitate simple and speedy integration into a control system.
The 2400 series comprises a range of products classified according to the body size of 18mm divided into 3 types “LINE”, “FLAT” and
“VDMA”.
The 10mm. and 18 mm. 24 VDC range of valves includes a range of accessories for the production of manifolded valve assemblies with 1 integral electrical connections.
Modules are available in two or four station variants for flexibility and are supplied to iP40 or alternatively iP65 environmental protection.

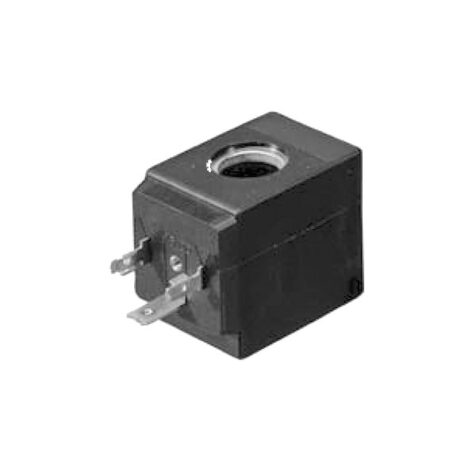

COILS

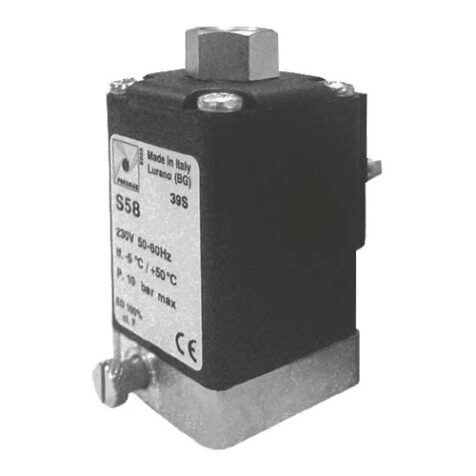

SERIES S

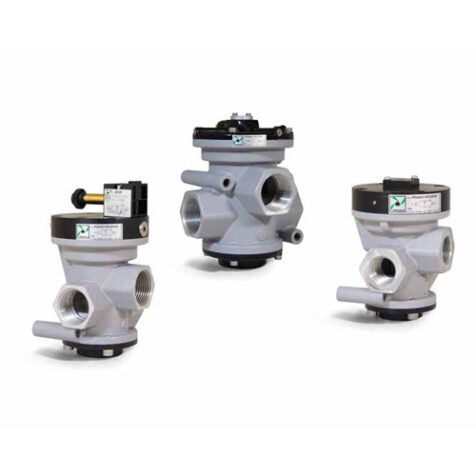

SERIES PG – HIGH FLOW RATES FOR COMPRESSED AIR AND VACUUM

Valves and solenoid poppet valves for high flow rates, for compressed air and vacuum. They represent the technical and functional evolution of the 700 series for sizes G1/2″ – G3/4″ – G1″ – G 1 ½”. They are manufactured in 3/2 and 2/2 versions, both normally closed and normally open. There is an additional seal on the piston which isolates connection 3 from the piloting, allowing the normally open and vacuum self-powered versions (not available in the previous series for sizes G1/2″ – G3/4″ – G1″)

Body and operators are made of die-cast ALUMINIUM and processed with protective epoxy paint.

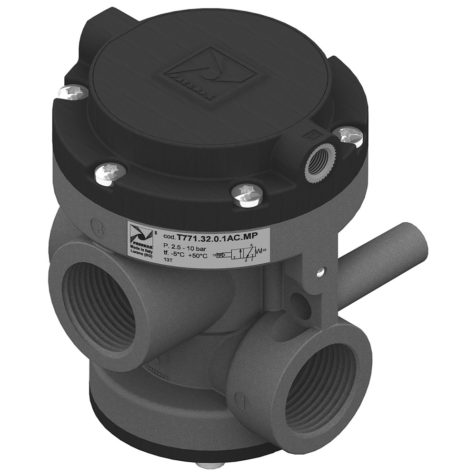

T771 SERIES

The range of G1” pilot and solenoid operated poppet valves represents an evolution of the current popular Zama series and of the series T772-T773 (G1/2″-3/4″).
Also for this series the main feature is the technopolimer material used to mould most of its components.
The use of this materiel results in a versatile, lightweight and economical valve.
This series also has other technical and functional enhancements over the existing range. Firstly, the traditional piston lip seal has been replaced with a rolling diaphragm, thereby eliminating frictional wear and tear to this seal.
This series (with the exception of certain vacuum models) also features a seal, which separates port 3 from the piston head. the inclusion of this seal has enhanced the valve’s performance and allows the valve to be used as normally open (a configuration not possible in the Zama series).
Solenoid operated valves (both internal and external pilot versions) are fitted with a quick exhaust unit, which reduces the return stroke operating time by 80%.
The bulk of the valves in this series use the MP type operator, the exception being internally piloted vacuum models, which use the MV operator. these operators differ from the M2 type in that they have self-tapping mounting screws for use in plastics.
Bistable versions are also available, both for air or for vacuum. These valves are fitted with a 3/2 sol-sol valve (instead of the standard pilot valve) fitted with two 15mm 24V Dc microvalves (N331.0A).
The ordering code are referring to the solenoid valves with mechanics “MP” or “MV” assembled.

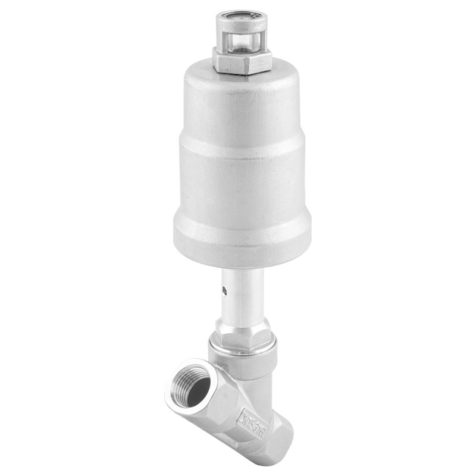

PVF SERIES

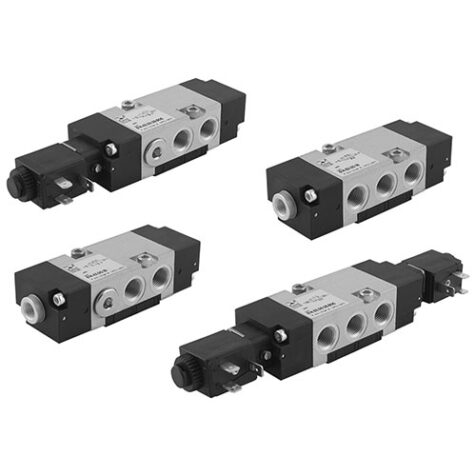

SERIES 514

NAMUR valves are 5/2 and 4/2 valves and electrovalves, piloted electrically or pneumatically, utilised primarily to operate rotary actuators and wherever there is a NAMUR standard installation plan.
The product is classified for use in potentially explosive atmospheres (Directive 2014/34/EU).
NAMUR valves have been developed using the latest, technical design solutions which guarantee flexibility and an increased flow rate capacity exceeding that of traditional, spool valves.
In addition, they have been produced with innovative materials which guarantee increased performance.

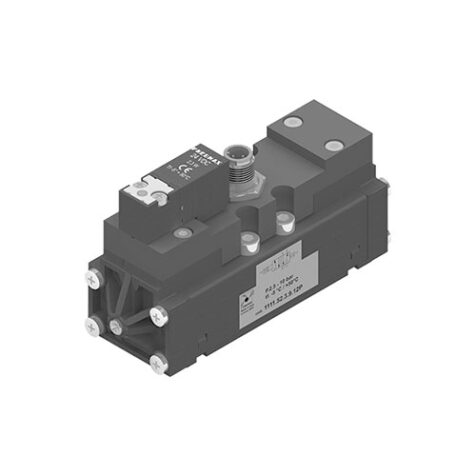

SERIES 1000-M12

The ISO 5599/1 Solenoid valves Series 1000 M12 are available in three sizes with flow rates from 900 NI/min for size 1 up to the 3600 NI/min for size 3.
the standard features of the isO valves are still included, however, they are now combined with a M12 electrical connector located in the middle of the valve to manage the electrical signals.
Versions are available to suit valves with both single and double 24VDC solenoids complete with IP65 protection.
All version are supplied with LED indicators.
Shifting time of pneumatic directional control valves or moving parts, logic devices were measured in accordance to ISO 12238:2001, Pneumatic fluid power-Directional control valves-Measurement of shifting time.

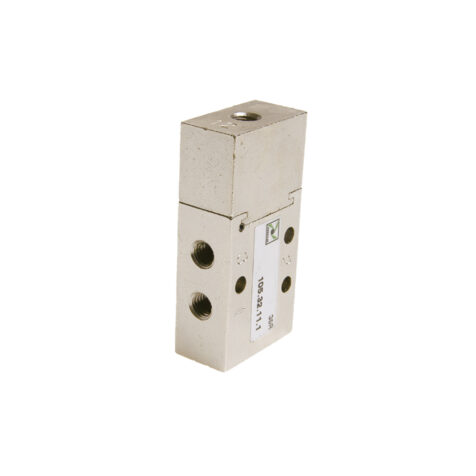

105 series

The 105 series includes a wide range of microvalves and valves with various types of actuation.
The connections for this series are M5.
Due to their particular balanced spool construction, these valves allow a diversified use of the 3-way and 5-way.
The 3-way can be used indifferently as normally closed or normally open and the 5-way can be fed from the 3 and 5-way exhausts with different pressures for particular applications.
During the movement phase, the spool isolates the connections and is not subjected to stress or movement due to the supply pressure.

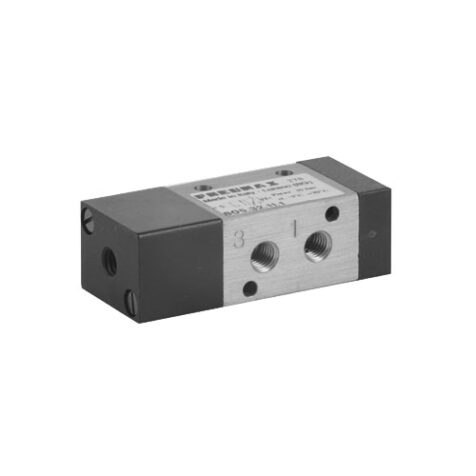

800 SERIES

The trend towards the miniaturization of components has been consolidated. the use of new technologies makes it possible to manufacture components with high flow rates but extremely compact sizes.
Electric piloting is by means of low-absorption miniature solenoids which are easily connected to the electronic control systems of machines (PLC).
Another object of study have been manifolds and multiple bases for ganged assembly of valves or solenoid valves with option for having outlets 2 and 4 either on the valve body or on the base through threaded holes or integrated quick connections provided.
Versions 3/2 and 5/2 are fitted with pneumatic and electropneumatic controls with resetting by mechanically or pneumatically operated spring, or by pneumatic or electropneumatic operation on the bistable versions.
The basic difference between this type of distributors and the others we produce, based on the spool system, lies in the fact that the seals rest on the spool and are dynamic, instead of being locked intoo spool the valve body by means of spacers. by this means a compact size is obtained and the distributors can be slotted into bases and manifolds by means of two screws.

T400 SERIES

The series T400 involves a wide range of Valves and Solenoid valves, with several type of acting, with connections from G1/8″ (T488) and G1/4″ (T424), are manufactured with high performance technopolimer.
The use of technopolymer has resulted in a light weight product which can be offered to the market at very interesting prices.
The gang mounted solenoid valves are available with the traditional manifold obtained from bored square bar of series 600 and with the extruded aluminium base allowing a unic inlet port conveying the exhausts. The base is also prearranged to be fixed on DIN 46277/3 guide..
The Valves and Solenoid valves G1/8″ (T488) are: 5 ways function, pneumatically operated, single solenoid (monostable) mechanical or pneumatic spring return, spring or pneumatic return, with 2 coils (bistable) and in 5 ways 3 positions version with closed, open and pressured centres.
The solenoid valves are supplied complete with coil (see series 300) so that the tension has to be added to the solenoid valve code:
M9 = Coil 24 V D.C. (rating power 2 watt)
M11 = Coil 24 V D.C. (rating power 3.8 watt)
M56 = Coil 24 V 50/60 HZ (starting power 9 VA, rating power 6 VA )
M57 = Coil 110 V 50/60 HZ (starting power 9 VA, rating power 6 VA)
M58 = Coil 220 V 50/60 HZ (starting power 9 VA, rating power 6 VA) .
The solenoid valves series G1/4″ (T424), are manufactured, depending on version and actuation (manual, pneumatic, or electrical), and self aligning (pneumatic – electric or spring) 3/2, 5/2 and 5/3 ways function, (monostable), (bistable).
the solenoid valves are supplied complete with coil so that the tension has to be added to the solenoid valve code.
B04 = coil 12V D.C.
B05 = coil 24V D.C.
B09 = coil 24V (2W) D.C.
B56 = coil 24V 50/60 Hz A.C.
B57 = coil 110V 50/60 Hz A.C.
B58 = coil 220V 50/60 Hz A.C.

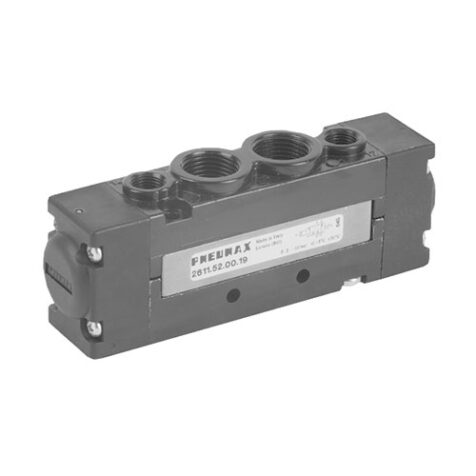

SERIES 2600 LINE-FLAT-VDMA

They have been designed to be easily assembled into groups or manifolds.
The 2600 series comprises a range of products classified according to the body size of 26mm divided into 3 types “LINE”, “FLAT” and “VDMA”.
Is not included the integral electrical connection.

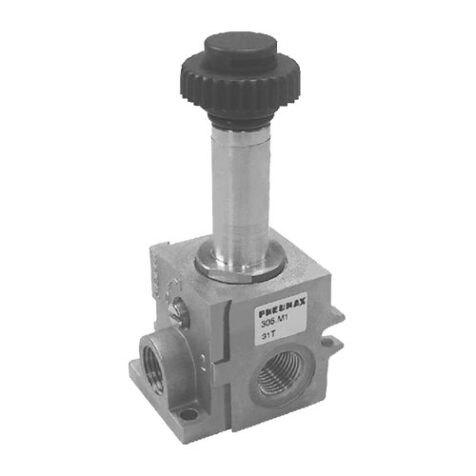

SERIES M (MECHANICAL)

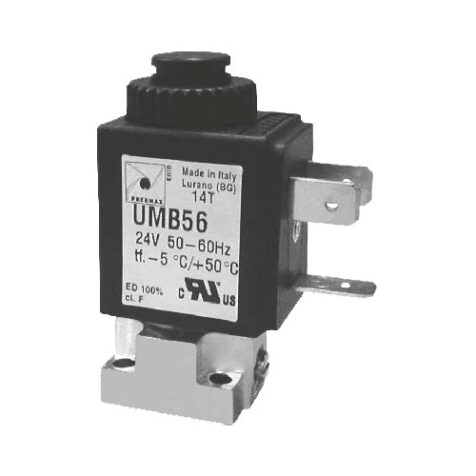

300-UL COILS

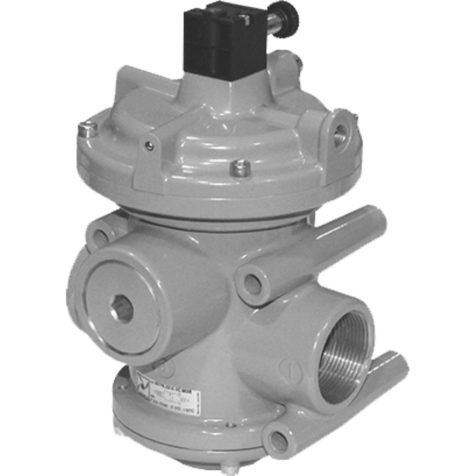

N776 SERIES

The N776 G1.1/2” series of valves and solenoid operated poppet valves is the result of the technical evolution of the 776 series.
A rolling diaphragm construction has replaced the previously used piston design ensure lower frictions and longer life. Connection 3 is isolated via a dedicated seal which allow to have the n.O. version as well as the self feed for vacuum which was not available on the 776 series.
The pilot valves are the M3r (CnOMO stile) with bistable manual override.

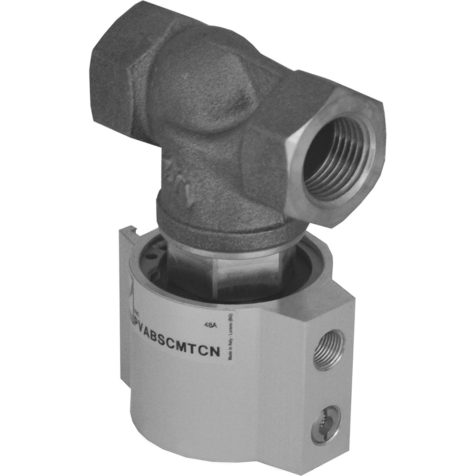

PVA SERIES

Pad Valves offer a reliable and economic solution to fluid control. The valve is manufactured with a 2 way Bronze body and actuated pneumatically using either a single or double acting compact cylinder which can be rotated 360°.
Versions are available with NBR, FPM or PTFE valve seals.
The barrel profile allows the use of magnetic sensors code “1500._” , “RS._” , “HS._”, for slots “A” type.

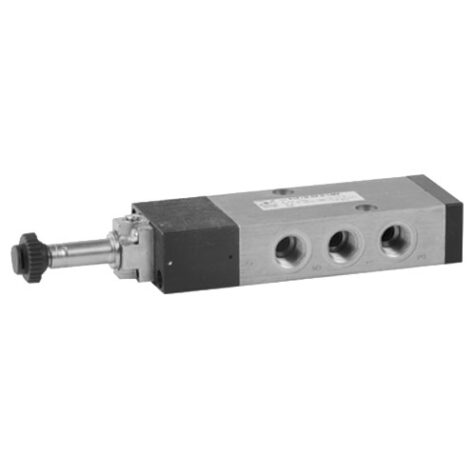

SERIES 514/N

The 514/N solenoid valves, are 2 stage valves actuated electro-pneumatically. A series 300 directly operated solenoid valve actuates pneumatically the principal power distributor.
Everything is well integrated in a practical configuration that also permits applications where there is limited space. used primarily to operate rotary actuators and wherever there is a NAMUR standard installation plan.
The pilot air is normally taken from the inlet port (autofeed) and the only actuating signal is electric.
The range of the solenoid valves, as far as dimensions and mechanical construction, is similar to series 200. We have therefore solenoid valves G 1/4″ with identical pneumatic characteristics that are, however, actuated electrically. They have a balanced spool, insentive to presence or absence of pressure. they are constructed in 3 and 5 way with 1 solenoid (monostable) or 2 solenoids (bistable).

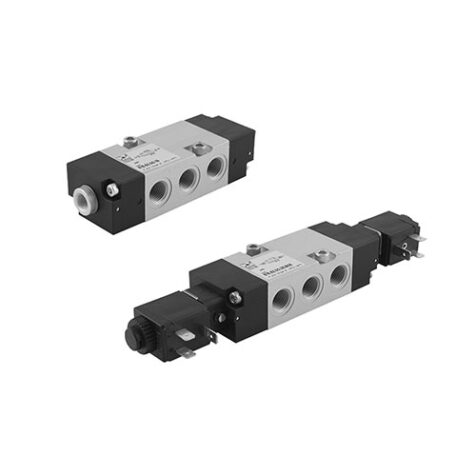

SERIES 515

NAMUR valves are 5/2 and 4/2 valves and electrovalves, piloted electrically or pneumatically, utilised primarily to operate rotary actuators and wherever there is a NAMUR standard installation plan.
The product is classified for use in potentially explosive atmospheres (Directive 2014/34/EU).
NAMUR valves have been developed using the latest, technical design solutions which guarantee flexibility and an increased flow rate capacity exceeding that of traditional, spool valves.
In addition, they have been produced with innovative materials which guarantee increased performance.

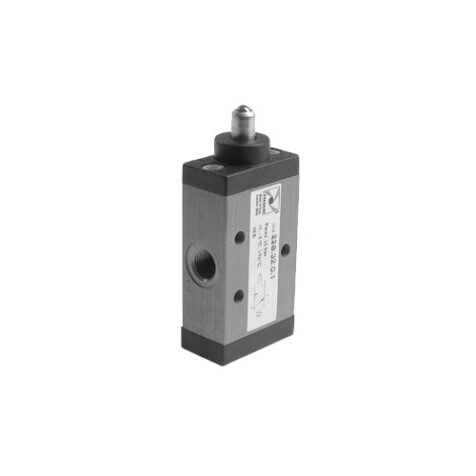

200 series

The 200 series includes a wide range of valves with various types of actuation.
The connections for this series range from G 1/8″ to G 1″.
Due to their particular balanced spool construction, these valves allow a diversified use of the 3-way and 5-way.
The 3-way can be used indifferently as normally closed or normally open and the 5-way can be fed from the 3- and 5-way exhausts with different pressures for particular applications.
During the movement phase, the spool isolates the connections and is not subjected to stress or movement due to the supply pressure.

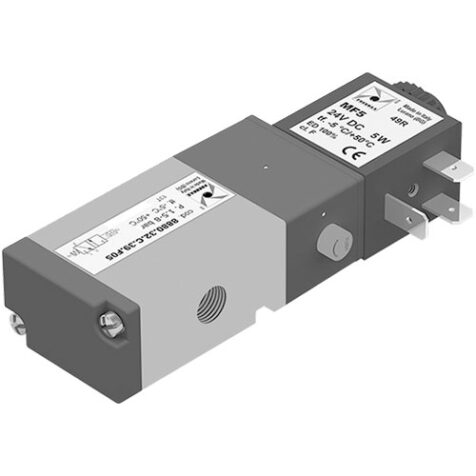

SERIES 888

Competitively priced, good performance and versatility combined with a compact design are the main characteristics of this new series of valves.
The aluminium valve body and spool/seal arrangement optimize both the flow rate and the valve switching time.
This series of valves are available with G1/8” and G1/4” ports in 3/2, 5/2 and 5/3 versions.
Monostable or bistable versions are available and include an integrated technopolymer solenoid operator with 9mm stem and built in manual override.
Solenoid valves series 888 are available in point-to-point and serial configurations.
For serial system specifications, see Optyma-F series.

2100 SERIES LINE-FLAT-BASE

This solenoid valves series has been developed to meet requirements for electronically controlled pneumatic systems and / or serial control systems already used in all manufacturing sectors.
They have been designed to be easily assembled into groups or manifolds and include integral electrical connection to facilitate simple and speedy integration into a control system.
The 2100 series comprises a range of products classified according to the body size of 10mm divided into 3 types “LINE”, “FLAT” and “BASE”.
The 10mm. and 18 mm. 24 VDC range of valves includes a range of accessories for the production of manifolded valve assemblies with 1 integral electrical connections.
Modules are available in two or four station variants for flexibility and are supplied to iP40 or alternatively iP65 environmental protection.

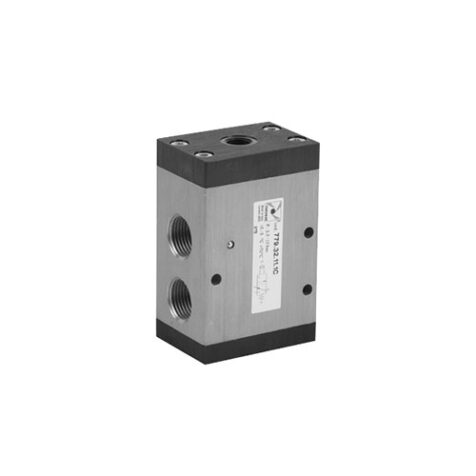

700 SERIES

The large flow valves and solenoid poppet valves for compressed air and vacuum.
Are manufactured for 3/2 and 2/2 versions only, either normally close and normally open.
For the compressed air oparation, the application is similar to the equivalent spool valves while for the vacuum operation a particular attention should be paid to the valve selected and its connection to the pump.
For the electric pilot it is used a normal miniature solenoid M2 with pneumatic actuator and the special miniature solenoid M2/V with vacuum.

300 SERIES

he direct operated solenoid valve is the interface between pneumatic and electronic. In fact, it is actuated by an electrical signal and in turn gives a pneumatic signal directly available for small users or for actuating bigger pneumatic distributors.
A wide range of valves are needed for satisfying various applications. For this need we have available miniature components with very low volume and electrical impute as well as solenoid valves with large flow rate and power for heavy duty operations. These solenoid valves are usually 3/2, normally closed or normally open, but there are available the 2/2, closed or open, for vacuum and others.
Note that the direct operated valves can only be used with bases, individual or multiple with M5 or G 1/8″ thread or with connections

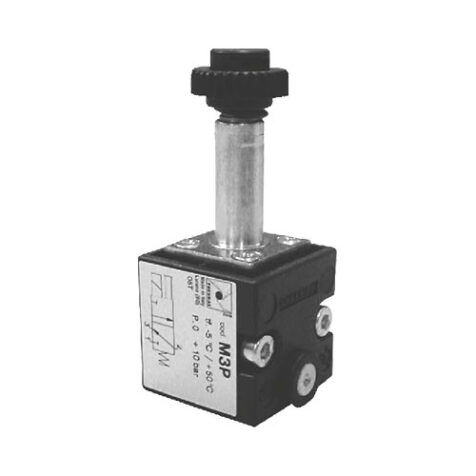

SERIES CNOMO

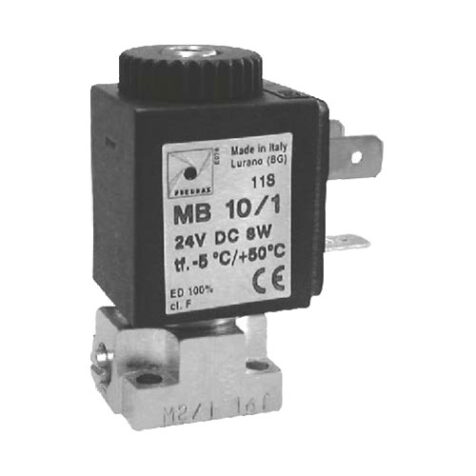

UL COILS

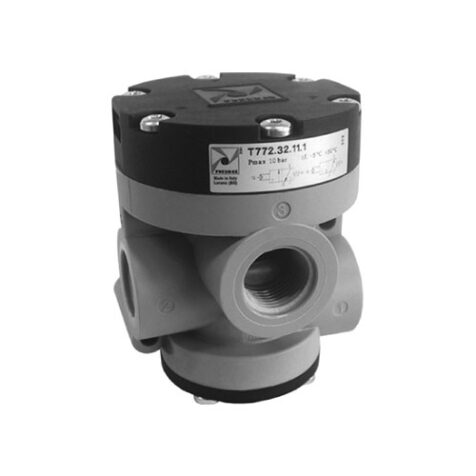

SERIES T772-773

The range of G1/2” and G3/4” pilot and solenoid operated poppet valves are manufactured with high impact resistant thermoplastic.
The use of this materiel results in a versatile, lightweight and economical valve.
The traditional piston lip seal has been replaced with a rolling diaphragm, thereby eliminating frictional wear and tear to this seal.
The valves (with the exception of certain vacuum models) also features a seal, which separates port 3 from the piston head. the inclusion of this seal has enhanced the valve’s performance and allows the valve to be used as normally open (a configuration not possible in the Zama series).
Solenoid operated valves (both internal and external pilot versions) are fitted with a quick exhaust unit, which reduces the return stroke operating time by 60%.
The bulk of the valves in this series use the MP type operator, the exception being internally piloted vacuum models, which use the MV operator. these operators differ from the M2 type in that they have self-tapping mounting screws for use in plastics.

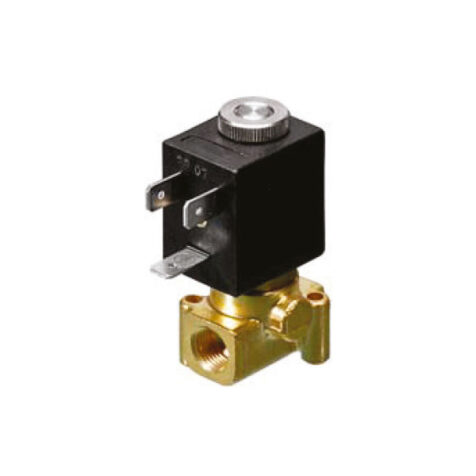

F300 SERIES

PNEUMAX offer a vast range of solenoid valves in brass and stainless steel designed to control air, water, steam and all fluids that are compatible with the materials (body and seals) used in the range. The solenoid valves are 2 or 3-way, normally closed, normally open, general service, direct acting or servo-actuated, with connections available in NPT & BSP threads from G1/8” up to G2”, with a working pressure range from vacuum to 100 bar. Solenoid valves are available with coils that conform to CESI 03 ATEX 344 certification for explosive environments. Our technical office ensures the highest standard of skill and understanding for the widest variety of applications, ensuring that the best possible solutions are found.

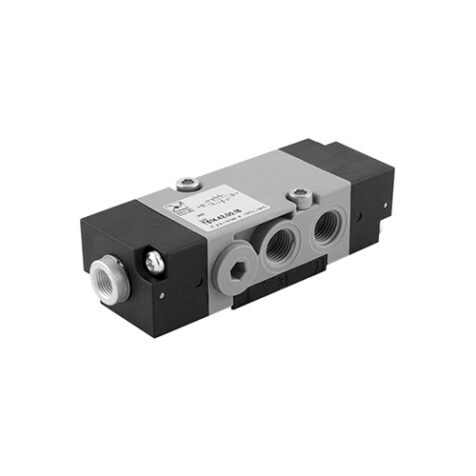

SERIES T514

TECNO-NAMUR are 5/2 and 4/2 valves are solenoid valves pneumatically or electrically actuated. They are used in industrial automation applications or whenever a NAMUR mounting plane is available.
Is available in 5/2, 4/2 and all-purposes versions. The final user can switch from one version to another by simply changing interface plate and adding/removing a plug.
TECNO-NAMUR valves are produced using the most up to date technical features, granting flexible design and elevated characteristics over standard products. superior performance is further enhanced by the use of innovative materials of construction.

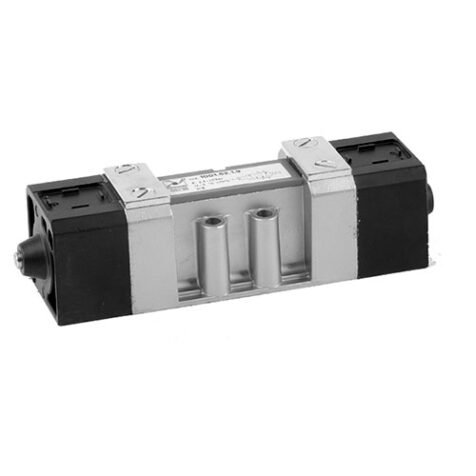

SERIES 1000

5 ways 2 or 3 positions distributors and electric distributors can be used mounted on individual or ganged bases.
These standards are ISO 5599/1, according to which certain dimensions are mandatory, namely, the mounting surface, the pitch of the fastening screws, the characteristic of the electric pilot, the flow rate, the pneumatic connections, and so on.
The design is based on the balanced spool principle with pneumatic or electropneumatic actuators and resetting by mechanically or pneumatically operated spring.
The 3 position closed centres, are obtained by spring operation.
The feed to the actuators on the distributors can be provided either by pressure intake from inlet 1(autofeed) or through the base from inlets 12 and 14 (external feed); there are two separate types of these distributors: one is the series 1000 and the other is the series 1010.
The serie 1000 includes size 1 and 2 and are built of die-cast aluminium. the selection is made by turning a seal fitted between body and operator by 180°, so to utilize external-feed pilot or with internal feed.
