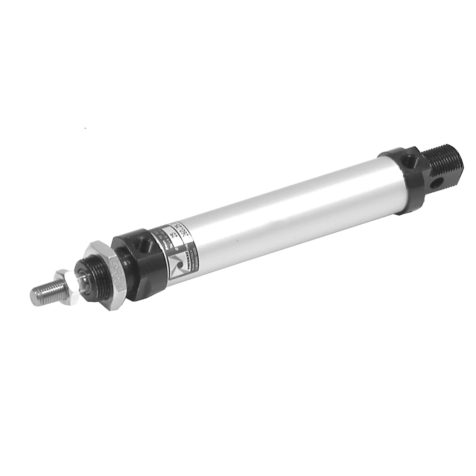

SERIES 1200 THREADED END COVERS CYLINDERS

Microcylinders are the most widespread linear actuators in common use due totheir reduced dimensions. They can be applied in the most varied of sectors,from packaging to textiles, from woodworking machines to the ceramic sector andso on.

MICROCYLINDERS ACCORDING TO STANDARD ISO 6432
THREADED END COVERS VERSION

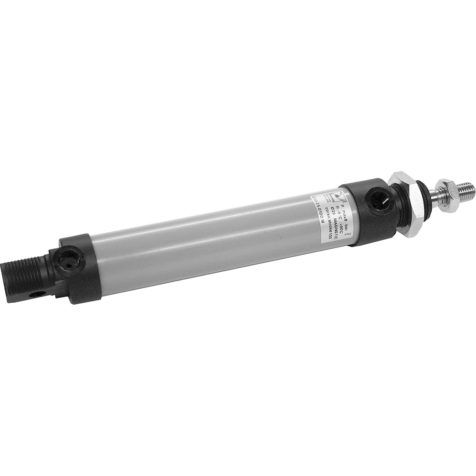

SERIES 1200 TECNO-MIR

Continuing in our commitment to the development and implementation of technologically advanced, competitive products we have introduced the 1230 series of technopolymer bodied microcylinders. This new cylinder complies with ISO6432.

MICROCYLINDERS ACCORDING TO STANDARD ISO 6432
TECHNOPOLYMER “TECNO-MIR”

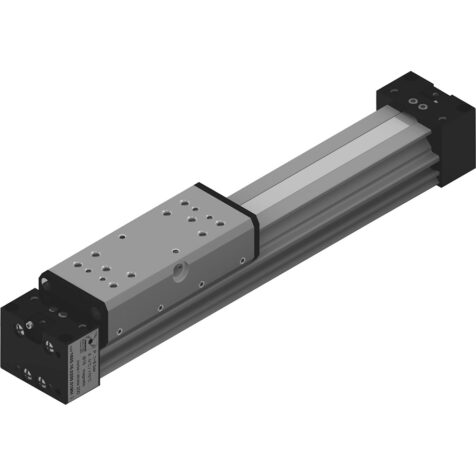

Series 1600 Ø16

Rodless cylinder based on the stainless steel strip sealing technology widely used and tested on bigger bore sizes.
Available versions: sliding shoe as standard (“MH”).
This system ensures high resistance and long life as the carriage which supports the weight is not tied to the piston and therefore the piston only transfers the movement without bearing any force.
Air connections: M5 threaded connections.
All air connections on one end cap version available. (side-back-bottom side)
Mountings:
– Foot brackets and intermediate supports if needed (depending on the stroke)
– Swivel bracket
– Directly in position via the slot on the end caps- in this conditions the air supply can come directly from the mounting plate.
Magnetic sensors: sensors series (1590…. , LRS…. and LHS….) can be used directly in the 2 slots on the barrel.

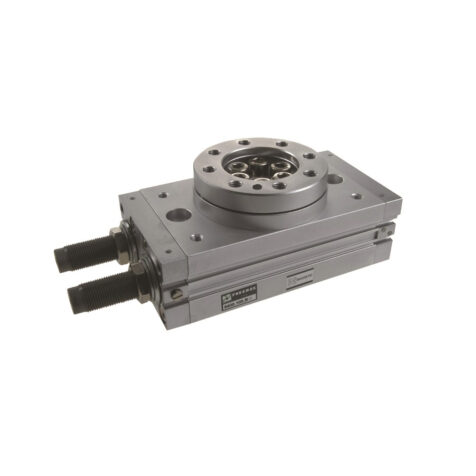

SERIES 6400

These rotary actuators convert linear motion of a piston into a rotary motion via a rack and pinion device, using a double system on 6400 versions.
Rotation can be adjusted between 0 and 190 degrees using variable stops that can also be substituted with hydraulic stoppers (shock absorbers).
These devices are equipped with a rotating table upon which the load is fixed.

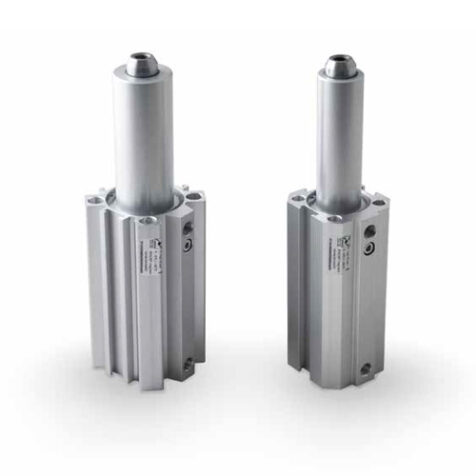

SERIES RT

The swing clamp cylinder has been developed to meet the need to clamp a workpiece by means of a clamping arm which when released would unclamp rotate 90 degrees in order to allow unrestricted access to the workpiece; the stroke of the swing movement is 21mm.
They are supplied in two bore sizes Ø40 and Ø50 in magnetic or non magnetic versions.

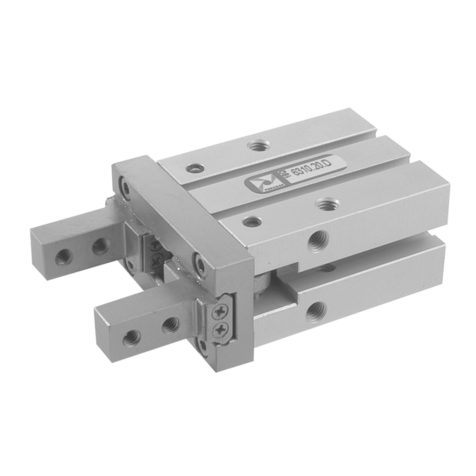

SERIES 6310

Pneumatic grippers from the 6300 series are typically used in complex systems such as assembly machines, robots, manipulators etc.
This series covers the wide range requirements of this sector, allowing a variety of applications.

PARELLEL STYLE – PNEUMATIC GRIPPERS

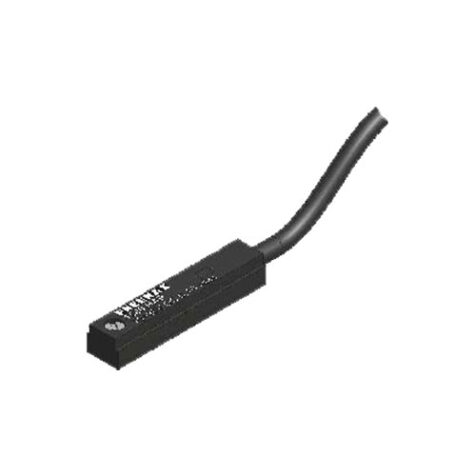

SERIES SR

The limit switches, or magnetic sensors, must be mounted on cylinders with magnetic piston.
These, when hit by the magnetic field generated by the piston as it approaches, close the circuit sending an electrical signal to relay, solenoid valve or converse with the controlling electronic system of the machine. There are both ampulla Reed and Hall effect magnetic sensor available. The sensors are attached to the cylinder by a proper clamp, slot or adapter and may have an activation LED indicator.
Note: The magnetic sensors are according to the Directive EMC 89/336/CEE and following amendments.

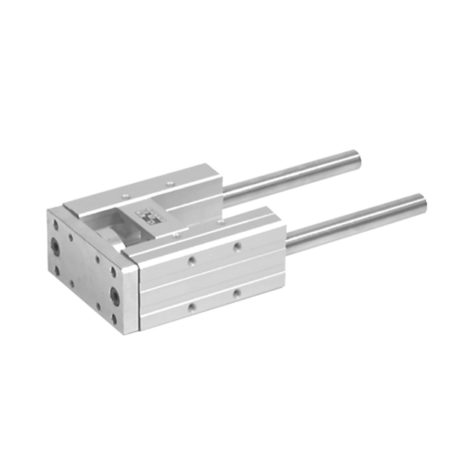

SERIES 1260 – 1320 GLB

The linear control units are used as non-rotating device with Ø 32, 40, 50 and 63 cylinders bore.

LINEAR CONTROL UNITS, 1260 – 1320 SERIES
PISTON ROD LOCK DEVICES, 1260 – 1320 SERIES

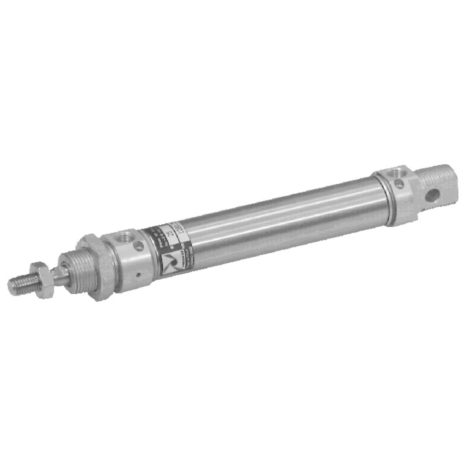

SERIES 1200 ROLLED END COVERS (MIR)

Microcylinders are the most widespread linear actuators in common use due totheir reduced dimensions. They can be applied in the most varied of sectors,from packaging to textiles, from woodworking machines to the ceramic sector andso on.

MICROCYLINDERS ACCORDING TO STANDARD ISO 6432
ROLLED END COVERS VERSION – “MIR”

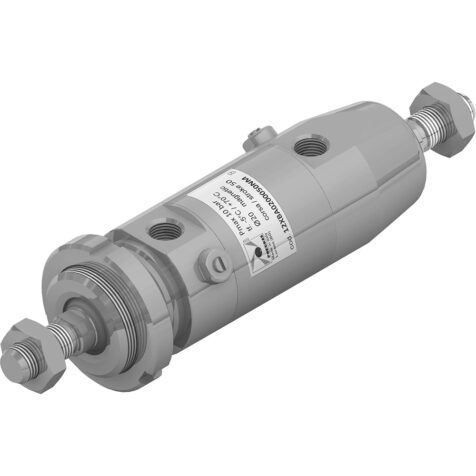

SERIES 1200 STEEL LINE

The 12X stainless steel ISO 6432 cylinders series are designed for corrosion resistance application such as marine, pharmaceutical and food ambiences.
The pre lubrication grease used is NSF H1 certified for food application.
Specific care has been taken during the design stages and the result is a clean profile cylinder easy to clean and free from possible residue build-up areas. All parts in contact with the external environment are in Stainless steel 316L and the seals are available in three different compounds for different temperature applications:
PUR -30C° – +80C°, FPM -5°C – +150°C and NBR -5°C – +70°C.
The range starts from 16 bore up to 63 bore, double acting version standard or with through rod, magnetic or not magnetic piston available.
The end caps are crimped onto the barrel for bore sizes 16 to 25 and screwed on the barrel from 32 to 63 bore.
Depending on the type of mounting required it is possible to choose different end caps style.
The piston is aluminium and the sensor bracket, when required is in stainless steel 316 with plastic adaptor or in plastic material. The cylinder can be fixed with the wide range of stainless steel accessories.

STAINLESS STEEL ISO 6432 MICROCYLINDERS

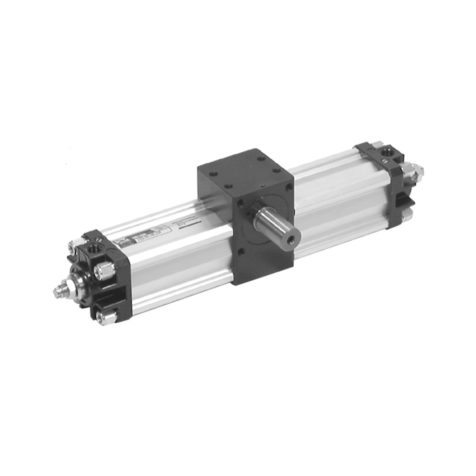

SERIES 1330

These rotary actuators transform the linear motion of a piston into the rotarymotion of a shaft. The uses in automation are varying and always convenient compareswith other solutions.

ROTARY ACTUATORS SERIES 1330-1331-1332-1333

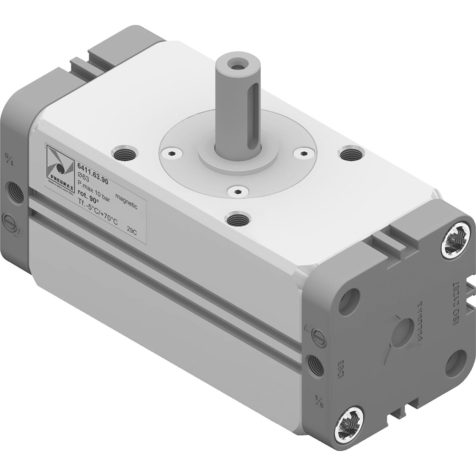

SERIES 6411

These rotary actuators convert linear motion of a piston into a rotary motion via a rack and pinion device, using a single pinion-rack system for the 6411 version.
The 6410 series actuators have fixed stops at 90 and 180 degrees.
These devices are equipped with a rotating table upon which the load is fixed.

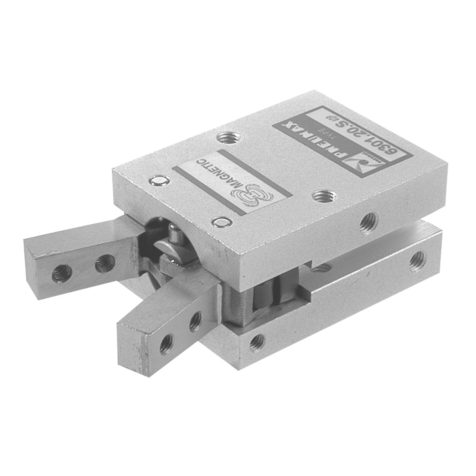

SERIES 6301 Pneumatic grippers angular

Pneumatic grippers from the 6300 series are typically used in complex systems such as assembly machines, robots, manipulators etc.
This series covers the wide range requirements of this sector, allowing a variety of applications.

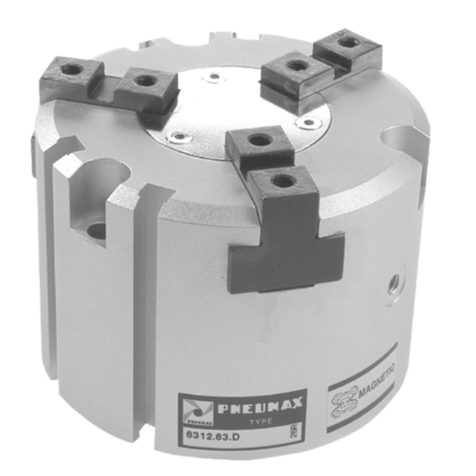

SERIES 6312

Pneumatic grippers from the 6300 series are typically used in complex systems such as assembly machines, robots, manipulators etc.
This series covers the wide range requirements of this sector, allowing a variety of applications.

3 FINGERS PARALLEL STYLE PNEUMATIC GRIPPERS

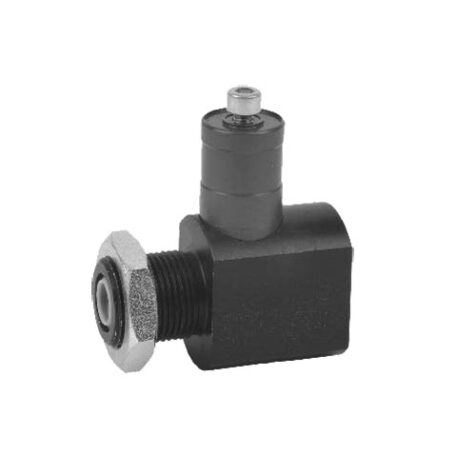

SERIES 1260 – 1320

The piston rod lock devices are clamping units mounted on the microcylinders front head. They allow the piston rod to lock in any position.
Piston rod clamping is mechanically obtained by springs actuated purpose-made jaws.
This method allows to lock the cylinder in the desired position, should the air pressure drop.
The piston rod lock device is not a safety device.

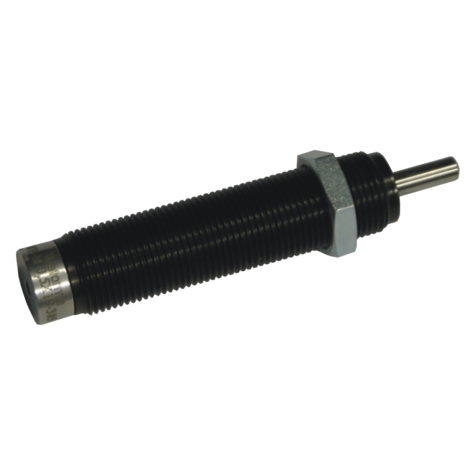

SERIES 6900

Dampers series 6900

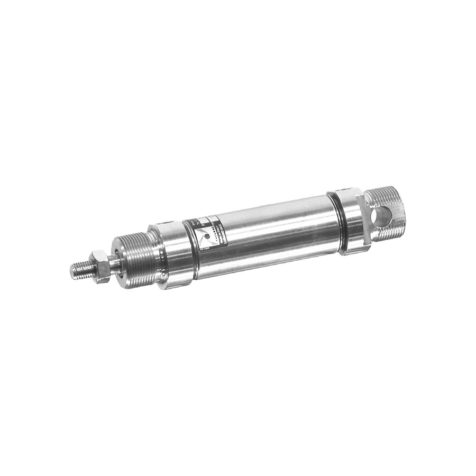

SERIES 1200 ROLLED AND COVERS (MIR-INOX)

Microcylinders according to standard ISO 6432 “MIR-INOX” Series 1200 – Rolled end covers

MICROCYLINDERS ACCORDING TO STANDARD ISO 6432 “MIR-INOX” SERIES 1200

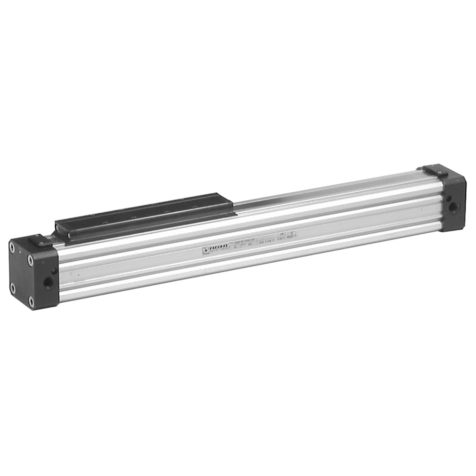

SERIES 1605

The purpose of producing a rodless cylinder is to provide a space saving option over conventional cylinders. On a traditional rod type cylinder, the total space occupied with rod out is more than double the length of the cylinder, while with rodless cylinder it is little more than its stroke. Profiled tube allows mounting of sensors 1500._, RS._, HS._ and 1580._, MRS._, MHS._ on the two sides of carriage, by means of suitable brackets. Standard accessories include foot mounting brackets for installation on cylinder and caps, intermediate mounting brackets to give support to long stroke cylinders under load (over one metre), an oscillating coupling device for installation between the mounting plate and the load and on request, a very precise external movement device.

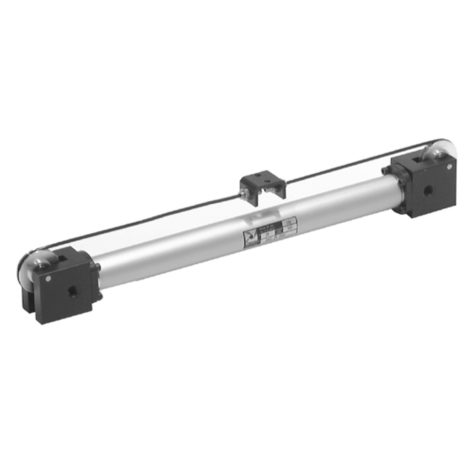

SERIES 1601

The cable cylinders work in a linear translation systems, they are very compact and can be used where a normal cylinder with a rigid rod is too cumbersome. The main characteristic of the cable cylinders is the absence of the rod which, in coming out of the end plate at the end of the stroke, doubles the total overall dimension of the cylinder. In the case of the cable cylinder, the rod is replaced by a metal rilsan-coated cable. It is connected to the piston and coming at the maximum point of stroke never exceeds the overall dimensions of the cylinder.
The cable is connected to the bracket with clamps which serve also to regulate the tension. Because of the construction characteristics of this type of cylinder it must be used with much care. The cable is capable of supporting large stress due to heavy load and high speed. Unfortunately, we cannot give definitive limits of use if not in presence of masses of a few kilograms to be translated (7 – 10 for 16 and 20 – 25 for Ø 25) with speed inversely proportional to the entity of the same load (max 0,5 m/sec). This is done in a way that the load always has a mechanical stop at the end of the stroke. The magnetic piston version lengthens the overall dimensions by 50 mm; the 1200 series microcylinder sensors are used along with the clips of that series.

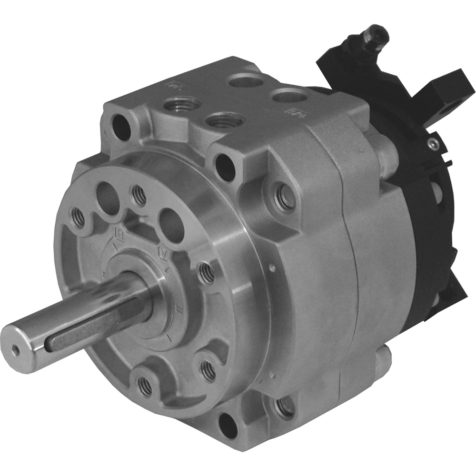

SERIES 6420

The vane type rotary actuators, 6420 series is designed to operate at 90-180 or 270 deg. In a contained space. Dimensionally are more compact than other types of rotary actuators.
The range includes bore sizes from 10 to 100 in 4 configurations:
– basic.
– with rotary angle adjustment mechanism.
– with sensing support.
– with rotary angle adjustment mechanism and sensing support.
The bodies are in aluminium , the shafts in chrome plated steel and the seals in NBR.
The sensing support kit enables for the sensors to be positioned in any position. The rotary angle adjustment mechanism enables the adjustment of the complete rotation on bore sizes 10 to 40 while on the others sizes carries as standard hydraulic dampers which enable the adjustment only of the last part of the rotation.
The units can be fixed using the thread on the body or the through holes on the body.
On bore sizes 50 to 100 the shaft runs into ball bearings which ensure high resistence.

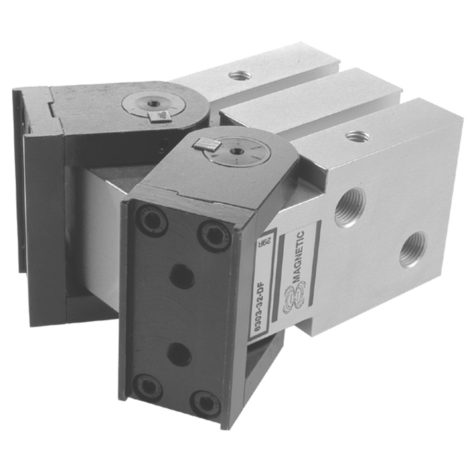

SERIES 6303

Pneumatic grippers from the 6300 series are typically used in complex systems such as assembly machines, robots, manipulators etc.
This series covers the wide range requirements of this sector, allowing a variety of applications.

PNEUMATIC GRIPPERS, ANGULAR
180° ANGULAR – RACK AND PINION STYLE

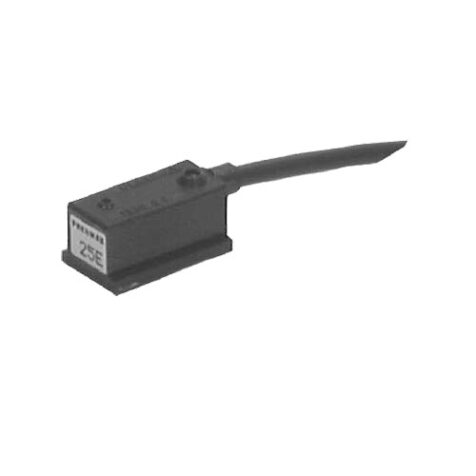

SERIES SA

The limit switches, or magnetic sensors, have to be mounted on cylinders with magnetic piston.
These, when hit by the magnetic field generated by the piston as it approaches, close the circuit sending an electrical signal to relay, solenoid valve or converse with the controlling electronic system of the machine. There are both ampulla Reed and Hall effect magnetic sensor available. The sensors are attached to the cylinder by a proper clamp, slot or adapter and may have an activation LED indicator.
Note: The magnetic sensors are according to the Directive EMC 89/336/CEE and following amendments.

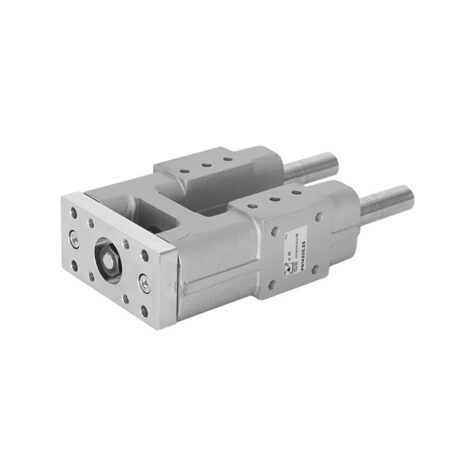

SERIE 1260 – 1320 GLC

Linear guiding units for ISO15552 Cylinders with recirculating ball bearings guides
