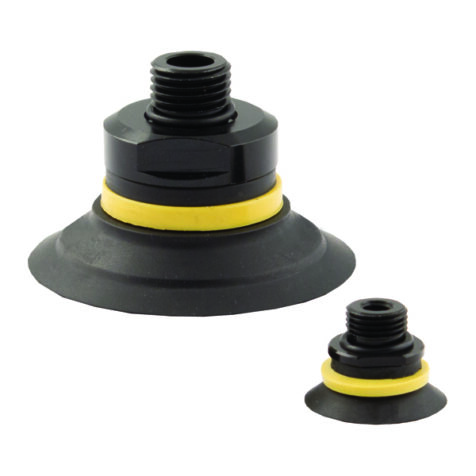

ROUND SUCTION CUP

Standard round suction cup, suitable for gripping and moving with vacuum objects with flat or slightly curved surfaces, allows gripping on concave surfaces.

Universal: Multipurpose applications, flat or slightly curved surface.

ROUND FLAT SUCTION CUP WITH TOUCH VALVE – SERIES 1900

When the suction cup is not in contact with the workpiece, the touch valve closes the suction avoiding loss of flow rate.
When the suction cup is not in contact with the workpiece, the touch valve is activated by opening the suction and ensuring normal operation of the suction cup.

Universal: Multipurpose applications, flat or slightly curved surface.

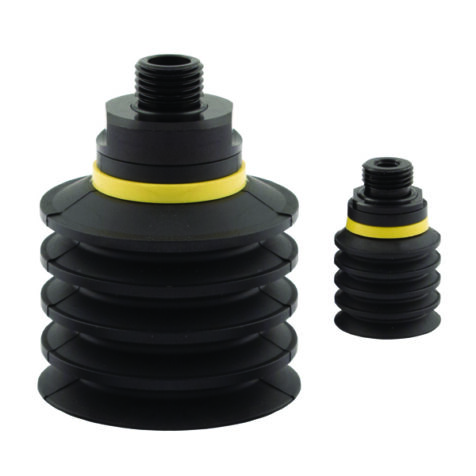

LONG BELLOWS SUCTION CUP

Food packaging: Designed for the handling of product within the food industry such as bread, chocolate, brioches etc. High capacity cups are designed to deform and adapt to the characteristics of the product being handled.

Plastick bag: Gripping and handling of plastic and paper bags, high capacity suction cups are designed to deform and adapt to the characteristics of the bag being picked up or opened.

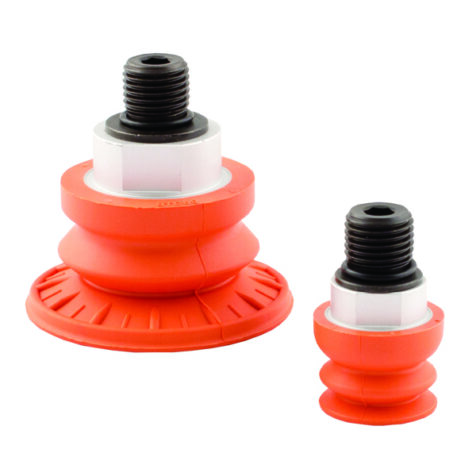

HIGH FRICTION SUCTION CUP

High friction round bellows suction cup suitable for movement of pieces of various size and shape and where level compensation is necessary, such as when withdrawing from loaders.
Especially recommended for applications with force parallel to the grip plane.The innovative design of the support plane inside the suction cup ensures high coefficient of friction with the grip surface, in particular on very oily sheets or glass panes and very wet marble, thanks to this suction cup’s drainage capability.
This feature enables a secure and solid grip by the suction cup and consequently ensures accurate positioning of the load to be moved

Metal sheet: Sheet metal industry, mainly used for handling, fixing and the processing of metal plate. Particularly suitable for oily surfaces and for handling pieces with lateral force, high slip resistance.

Slip resistance: Suitable for handling material with a smooth surface, prevent side sliding when gripped.

Oily surfaces: Special suction cups suitable for oily surfaces.

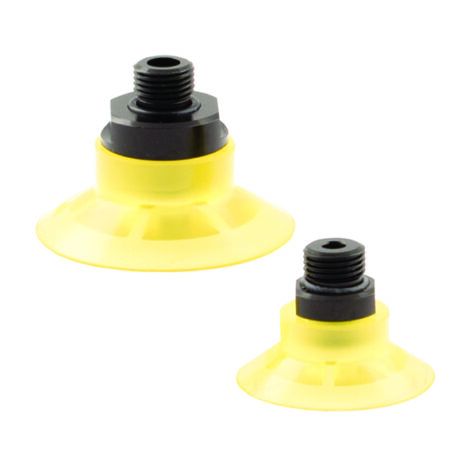

ROUND SUCTION CUP POLYURETHANE

Standard round suction cup made of polyurethane, suitable for gripping and moving with vacuum, objects with flat or slightly curved surfaces, allows gripping on concave surfaces.
The big advantage of this suction cup, is that the material it’s made of, polyurethane, lasts longer than other materials, has optimum wear resistance, good flexibility and
Polyurethane suction cups are mark resistant.

Packaging: Product packaging and handling of packaged products, mainly used for handling cardboard boxes and interlayers.

Long life time: Made with a particular anti-abrasive compound that increases its resistance and longevity.

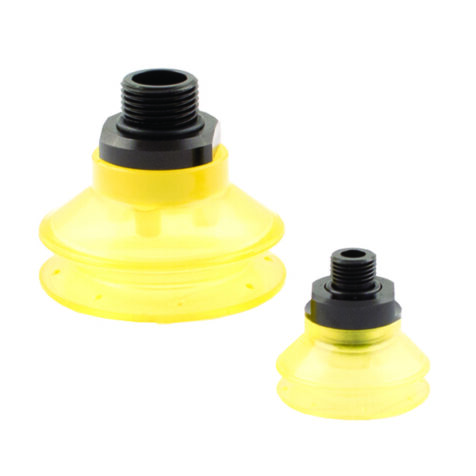

ROUND BELLOWS SUCTION CUP

Round bellows suction cup made of polyurethane, suitable for movement of pieces of various size and shape and where level compensation is necessary, such as when withdrawing from loaders. The big advantage of this suction cup, is that the material it’s made of, polyurethane, lasts longer than other materials, has optimum wear resistance, good flexibility and optimum tensile strength. Suitable for moving porous objects or ones with an irregular surface, such as cardboard. Polyurethane suction cups are mark resistant.

Packaging: Product packaging and handling of packaged products, mainly used for handling cardboard boxes and interlayers.

Long life time: Made with a particular anti-abrasive compound that increases its resistance and longevity.

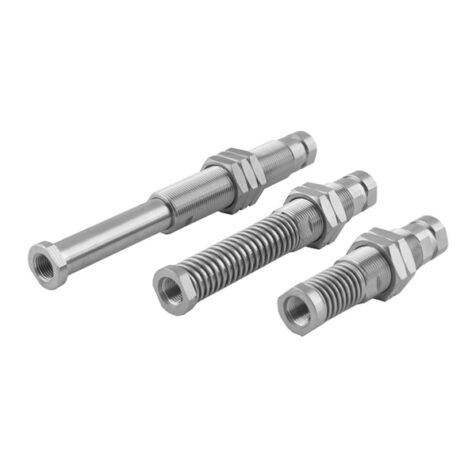

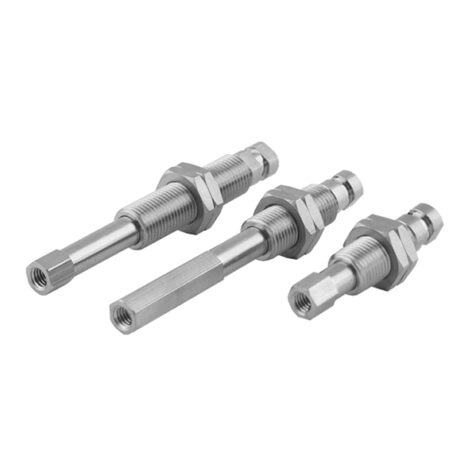

COMPENSATOR INTERNAL SPRING

The standard level compensator M5 makes it possible to compensate for differences in height when the gripping system has to deal with objects of different heights, simplifies accurate positioning on vacuum systems, and makes it possible to position the suction cups on fragile items.

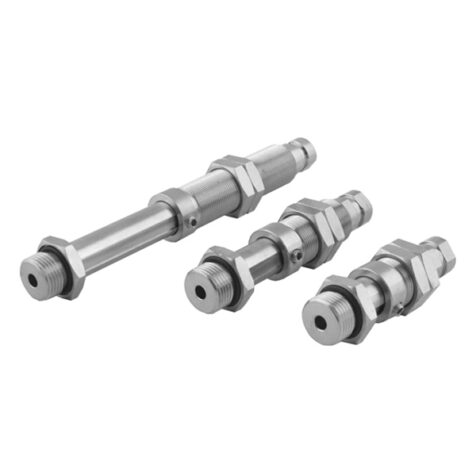

ANTI-ROTATION COMPENSATOR

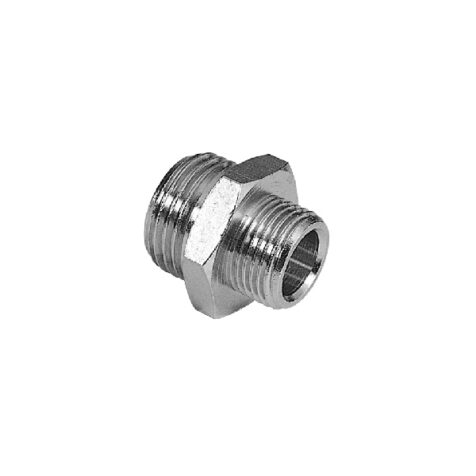

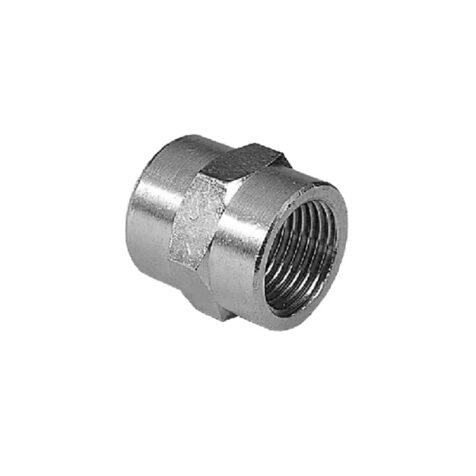

CYLINDRICAL NIPPLES FOR COMPENSATORS

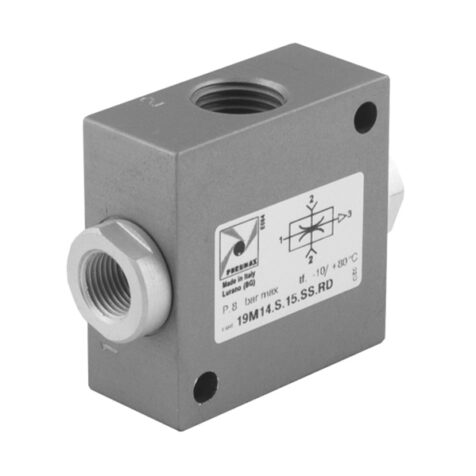

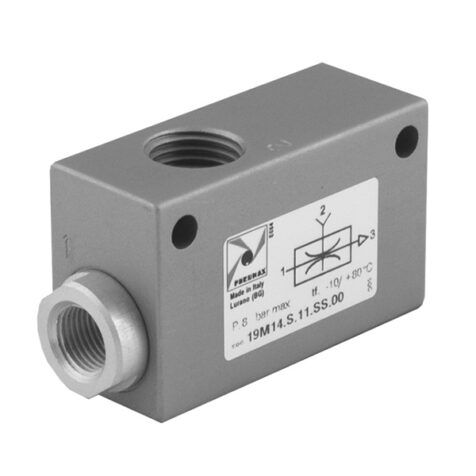

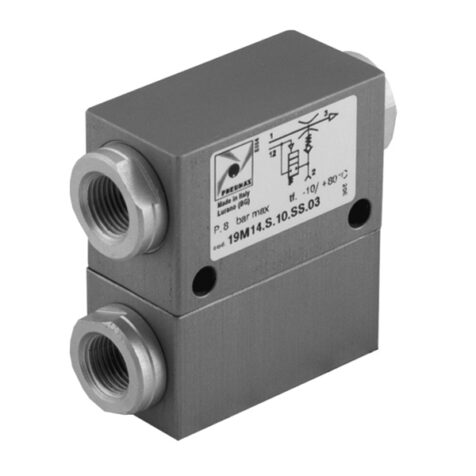

SINGLE STAGE VACUUM GENERATOR

Single stage generators, robust and reliable, with compact dimensions and suitable for applications which require the vacuum to be reached quickly with limited air flow. Operating on the Venturi principle they have the vacuum connection orthogonal to the axis of supply and outlet. They can be connected directly to the suction cups or suction cup holder for the construction of a decentralized plant. Equipped with an integrated non-return valve, which holds the vacuum in sealed applications and breakdowns or lack of air supply and a flap valve for the quick release of the manipulated objects.

SINGLE STAGE VACUUM GENERATOR

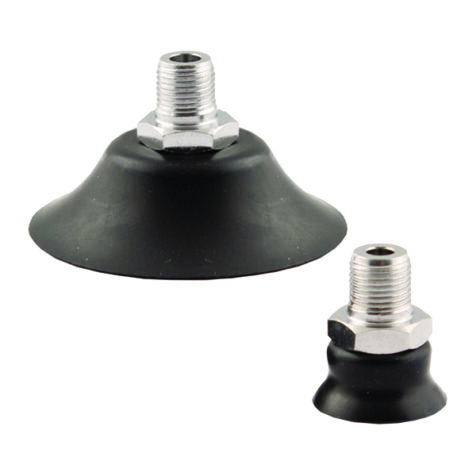

CUP-STYLE ROUND SUCTION CUP

Typical cup-shaped suction cup, suitable for gripping and moving with vacuum objects with flat or slightly curved surfaces, allows gripping on concave surfaces.

Universal: multipurpose applications, flat or slightly curved surface

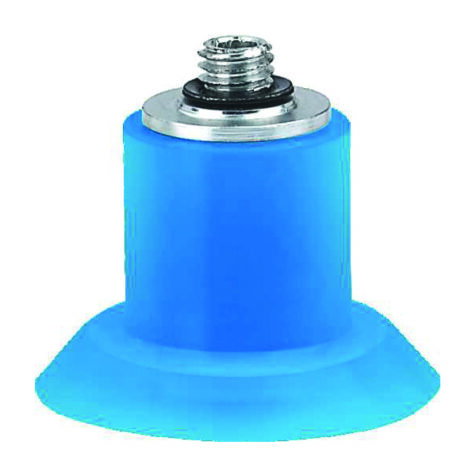

SUCTION CUP FOR PLASTIC FILM

Specially designed for opening plastic bags. Suitable for handling thin and delicate objects, such as plastic films or paper.
The thin and adaptable lip together with the internal plugs avoid damages to the film during the suction phase.

Packaging: Product packaging and handling of packaged products, mainly used for handling cardboard boxes and interlayers.

Plastick bag: Gripping and handling of plastic and paper bags, high capacity suction cups are designed to deform and adapt to the characteristics of the bag being picked up or opened.

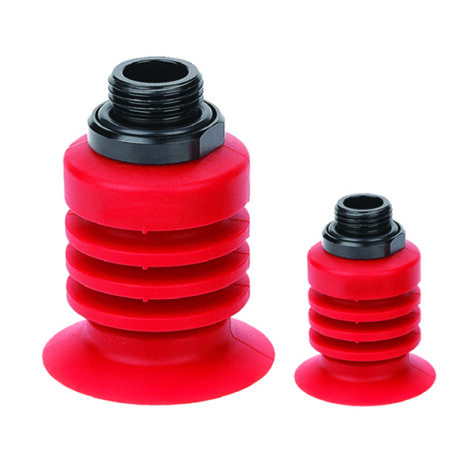

BELLOWS SUCTION CUP FOR BAGS

The long bellows suction cup is especially suited for the movement of bags, thanks to its very thin lip and internal notchings, which allow it to ensure secure gripping even with heavy bags that are difficult to lift.

Food packaging: Designed for the handling of product within the food industry such as bread, chocolate, brioches etc. High capacity cups are designed to deform and adapt to the characteristics of the product being handled.

Plastick bag: Gripping and handling of plastic and paper bags, high capacity suction cups are designed to deform and adapt to the characteristics of the bag being picked up or opened.

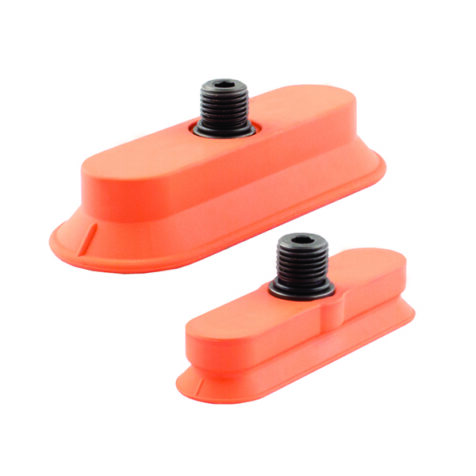

HIGH FRICTION OVAL SUCTION CUP

High friction oval suction cup suitable for movement of elongated thin pieces; the reinforced internal structure ensures that lifted objects are not deformed and increases friction force in applications with force parallel to the grip plane. The innovative design of the support plane inside the suction cup ensures high coefficient of friction with the grip surface, in particular on very oily sheets or glass panes and very wet marble, thanks to this suction cup’s drainage capability. This suction cup is most particularly recommended for applications of handing sheet metal parts in the “automotive” industry. This feature enables a secure and solid grip by the suction cup and consequently ensures accurate positioning of the load to be moved.

Metal sheet: Sheet metal industry, mainly used for handling, fixing and the processing of metal plate. Particularly suitable for oily surfaces and for handling pieces with lateral force, high slip resistance.

Slip resistance: Suitable for handling material with a smooth surface, prevent side sliding when gripped.

Oily surfaces: Special suction cups suitable for oily surfaces.

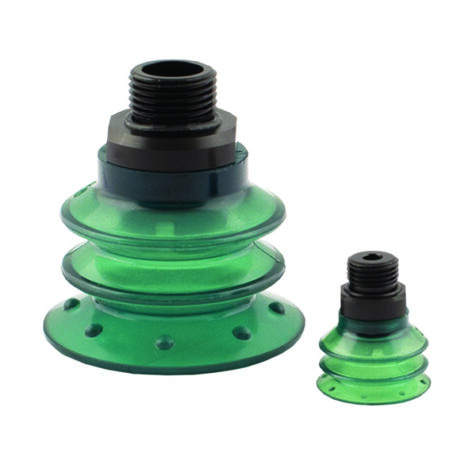

BELLOWS SUCTION POLYURETHANE

Round bellows suction cup made of polyurethane, suitable for moving pieces of various sizes and shapes and where level compensation is necessary, such as when withdrawing from loaders.
The big advantage of this suction cup, is that the material it’s made of, polyurethane, lasts longer than other materials, has optimum wear resistance, good flexibility and optimum tensile
strength. Suitable for moving with vacuum steel sheets, glass sheets , cardboard boxes and wood panels.

Metal sheet: Sheet metal industry, mainly used for handling, fixing and the processing of metal plate. Particularly suitable for oily surfaces and for handling pieces with lateral force, high slip resistance.

Slip resistance: Suitable for handling material with a smooth surface, prevent side sliding when gripped.

Oily surfaces: Special suction cups suitable for oily surfaces.

Long life time: Made with a particular anti-abrasive compound that increases its resistance and longevity.

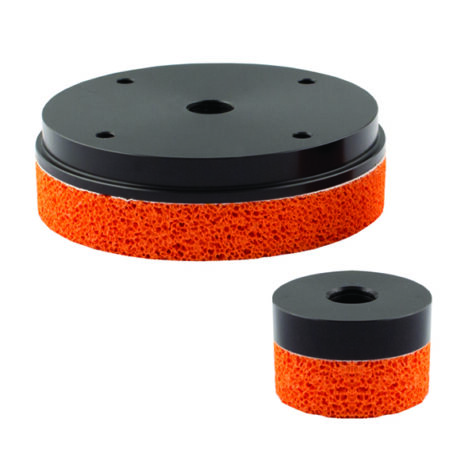

FOAM RUBBER SUCTION CUP

Foam rubber round suction cup is made from a special mixture called “NR”, which has a density that allows for gripping even on very rough and irregular surfaces, and allows its elasticity to be maintained even after several working cycles. Especially suited for moving loads with coarse or very rough surfaces such as: sawn, bush-hammered or flamed marble, textured, non-slip or ribbed/corrugated sheets, brick, items made of rough concrete, garden walkway tiles, etc., and in general in all cases where traditional suction cups cannot be used.
Recommended for handling loads with lifting force parallel to the surface and for the movement of loads with oiled surfaces.

Stone & Marble: Stone and marble processing industry, mainly for handling marble slabs and bricks. Particularly suitable for uneven surfaces, where a large deformation of the suction cup is required.

Rough surface: Suitable for handling material with a rough surface such as sawn wood, marble slabs and bricks. Suction cups with sponge rubber are used in order to better compensate for the irregularity of the surface.

STANDARD LEVEL COMPENSATOR

The standard level compensator G1/8” makes it possible to compensate for differences in height when the gripping system has to deal with objects of different heights, simplifies accurate positioning on vacuum systems, and makes it possible to position the suction cups on fragile items.

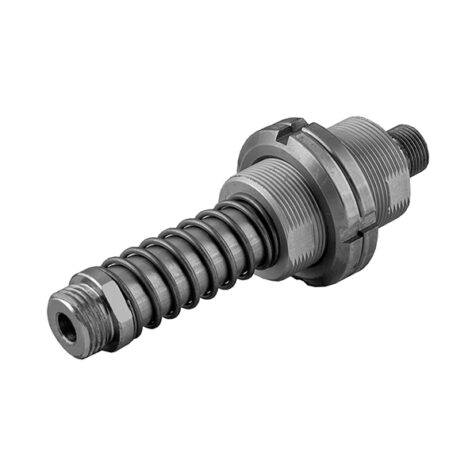

STANDARD LEVEL COMPENSATOR

The standard level compensator G1/2” makes it possible to compensate for differences in height when the gripping system has to deal with objects of different heights, simplifies accurate positioning on vacuum systems, makes it possible to position the suction cups on fragile items

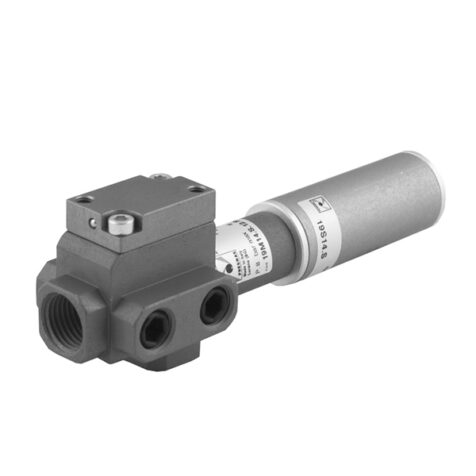

SINGLE STAGE VACUUM GENERATOR

Single stage generators, robust and reliable, with compact dimensions and suitable for applications which require the vacuum to be reached quickly with limited air flow. Operating on the Venturi principle they have the vacuum connection orthogonal to the axis of supply and outlet. They can be connected directly to the suction cups or suction cup holder for the construction of a decentralized plant. Equipped with an integrated non-return valve, which holds the vacuum in sealed applications and breakdowns or lack of air supply and a flap valve for the quick release of the manipulated objects.

ROUND FLAT SUCTION CUP

Round flat suction cup, suitable for gripping and moving with vacuum, objects with flat surfaces, offers good stability and minimal displacement. Recommended for applications with force parallel to grip plane, suitable for moving glass, wood, steel and plastic sheets. Internal reinforcements prevent thin objects from deforming and increase friction in applications with forces parallel to grip plane.

Universal: Multipurpose applications, flat or slightly curved surface.

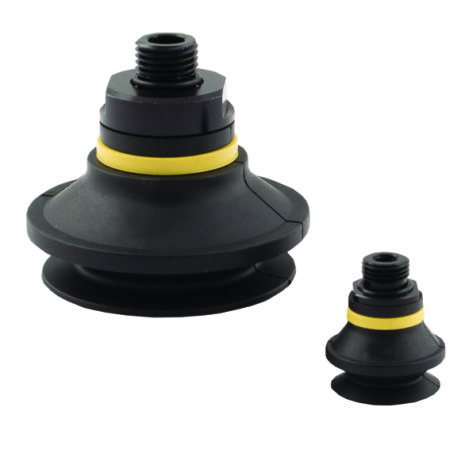

ROUND BELLOWS SUCTION CUP

Round bellows suction cup, which, due to its shape, ensures that when in contact with the surface of the load to be lifted and in the presence of vacuum, it rapidly collapses, releasing the load of several millimetres, separately from the movements of the automation system; this rapid movement prevents the load underneath from remaining stuck to the one being lifted. For this reason, suction cups with this feature are recommended in cases where you need to pick off and move sheets of cardboard, fine sheets, wood panels, glass panes etc. and are also recommended for use on curved surfaces. This suction cup is not suitable for handling objects with lifting force parallel to the surface.

Universal: Multipurpose applications, flat or slightly curved surface.

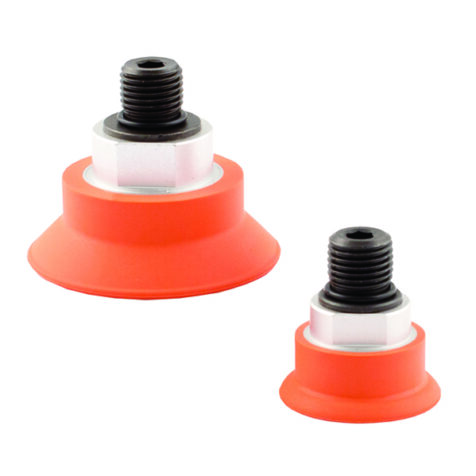

HIGH FRICTION SUCTION CUP

High friction round suction cup suitable for movement of pieces of various size and shape, reinforced internal structure ensures that lifted objects are not deformed and increases friction force in applications with force parallel to the grip plane. The innovative design of the support plane inside the suction cup ensures high coefficient of friction with the grip surface, in particular on very oily sheets or glass panes and very wet marble, thanks to this suction cup’s drainage capability. This suction cup is most particularly recommended for applications of handing sheet metal parts in the “automotive” industry. This characteristic means that there is asecure and solid grip by the suction cup and consequently ensures accurate positioning of the load to be moved.

Metal sheet: Sheet metal industry, mainly used for handling, fixing and the processing of metal plate. Particularly suitable for oily surfaces and for handling pieces with lateral force, high slip resistance.

Slip resistance: Suitable for handling material with a smooth surface, prevent side sliding when gripped.

Oily surfaces: Special suction cups suitable for oily surfaces.

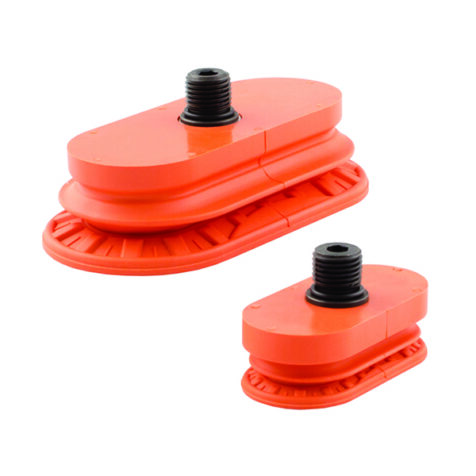

OVAL HIGH-FRICTION BELLOWS SUCTION CUP – SERIES 1900

High friction oval bellows suction cup suitable for movement of elongated and thin pieces and where level compensation is necessary, such as in the withdrawal of loaders.
Especially recommended for applications with force parallel to the grip plane. The innovative design of the support plane inside the suction cup ensures a high coefficient of friction with the grip surface, in particular on very oily sheets or glass panes and very wet marble, thanks to this suction cup’s drainage capability.
This feature enables a secure and solid grip by the suction cup and consequently ensures accurate positioning of the load to be moved.

Metal sheet: Sheet metal industry, mainly used for handling, fixing and the processing of metal plate. Particularly suitable for oily surfaces and for handling pieces with lateral force, high slip resistance.

Slip resistance: Suitable for handling material with a smooth surface, prevent side sliding when gripped.

Oily surfaces: Special suction cups suitable for oily surfaces.

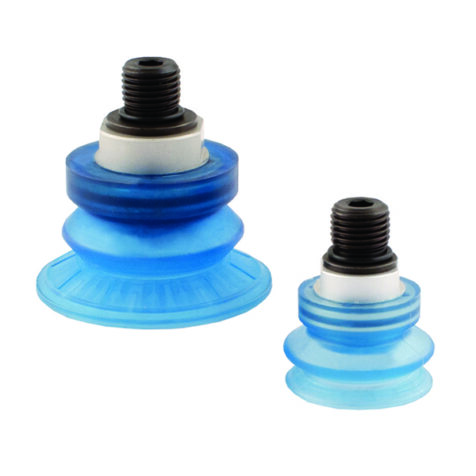

ROUND BELLOWS SUCTION CUP

Round bellows suction cup made of polyurethane, suited for movement of pieces of various size and shape and where level compensation is necessary, such as when withdrawing from loaders.
The big advantage of this suction cup, is that the material it’s made of, polyurethane, lasts longer than other materials, has optimum wear resistance, good flexibility and optimum tensile
strength. Polyurethane suction cups are mark resistant.

Packaging: Product packaging and handling of packaged products, mainly used for handling cardboard boxes and interlayers.

Long life time: Made with a particular anti-abrasive compound that increases its resistance and longevity.

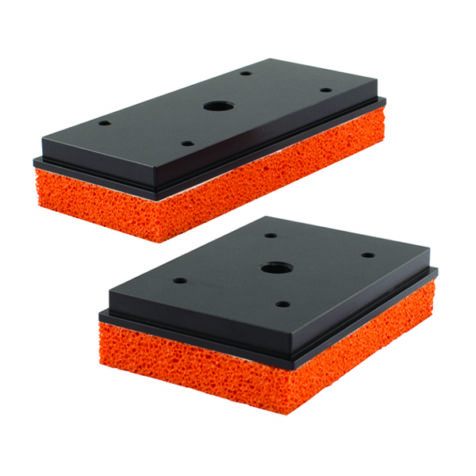

FOAM RUBBER RECTANGULAR

Foam rubber rectangular suction cup is made from a special mixture called “NR”, which has a density that allows for gripping even on very rough and irregular surfaces, and allows its elasticity to be maintained even after several working cycles.Especially suited for movement of loads with coarse or very rough surfaces such as: sawn, bush-hammered or flamed marble, textured, non-slip or ribbed/corrugated sheets, brick, items made of rough concrete, garden walkway tiles, etc. and in general in all cases where traditional suction cups cannot be used.
Not recommended for handling loads with lifting force parallel to the surface or for the movement of loads with oiled surfaces.

Stone & Marble: Stone and marble processing industry, mainly for handling marble slabs and bricks. Particularly suitable for uneven surfaces, where a large deformation of the suction cup is required.

Rough surface: Suitable for handling material with a rough surface such as sawn wood, marble slabs and bricks. Suction cups with sponge rubber are used in order to better compensate for the irregularity of the surface.

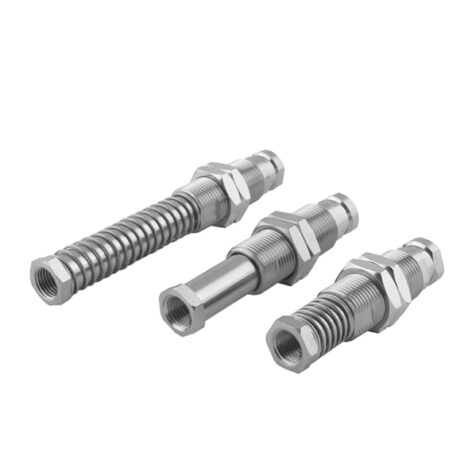

standard level compensator G1/4”

The standard level compensator G1/4” makes it possible to compensate for differences in height when the gripping system has to deal with objects of different heights, simplifies accurate positioning on vacuum systems, makes it possible to position the suction cups on fragile items.

CYLINDRICAL NIPPLES FOR COMPENSATORS

SINGLE STAGE VACUUM GENERATOR

Single stage generators, robust and reliable, with compact dimensions and suitable for applications which require the vacuum to be reached quickly with limited air flow. Operating on the Venturi principle they have the vacuum connection orthogonal to the axis of supply and outlet. They can be connected directly to the suction cups or suction cup holder for the construction of a decentralized plant. Equipped with an integrated non-return valve, which holds the vacuum in sealed applications and breakdowns or lack of air supply and a flap valve for the quick release of the manipulated objects.
