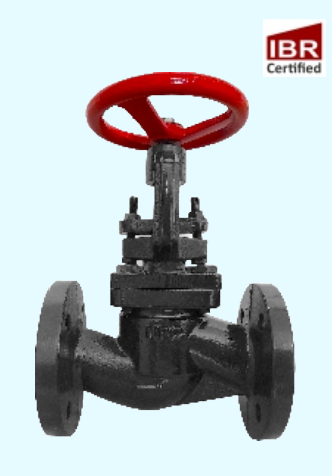

CAST IRON GLOBE STEAM STOP VALVE PN16

Model no. : UPC-GBV-426

Size : 15 mm - 200 mm

Product standard: BS:5152 / DIN 86251

Pressure Rating : PN 16 || PN 40

Body Material Std. : Cast Iron IBR 86 to 93 Gr. A

Product Description : Bolted Bonnet, Outside Screw & Yoke Type Rising Stem

Test Pressure : PN 16 - B.T.P.-26 kg/cm² Hyd. || S.T.P.-16 kg/cm² Hyd.

                            PN 40 -  B.T.P.-60 kg/cm² Hyd. ||  S.T.P.-40 kg/cm² Hyd.

Max. Temp. : PN 16 - 220º C (428ºF) || PN 40 - : 425º C (800ºF)

------------------------------------------------------------------------------------

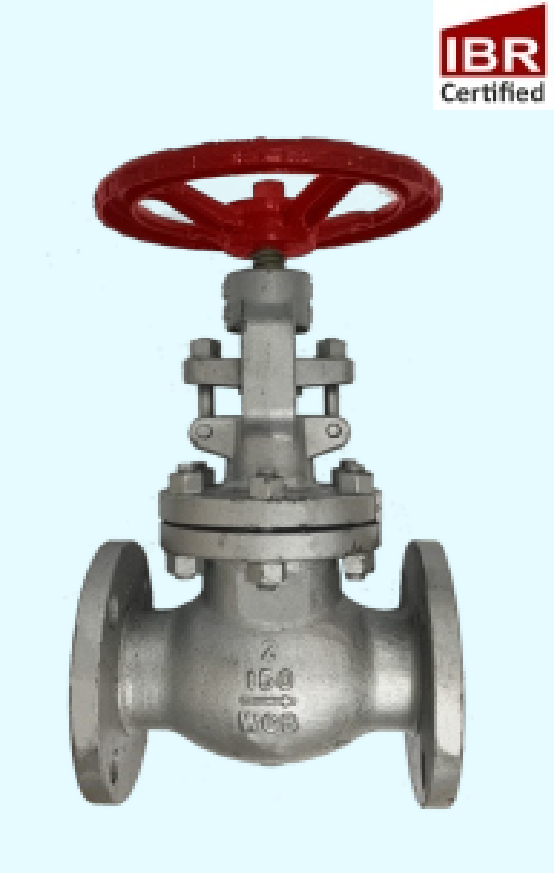

CAST CARBON STEEL STEAM STOP GLOBE VALVE

Model no. : UPC-GBV-428

Size : 25 mm - 300 mm

Product Standard :  B.S. 1873

Product Description : CL150# / CL300# Flange End R/Face

Body / Bonnet : Cast Steel (A216 GR. WCB)

Seat Ring : 13% Cr. S.S. (AISI-410) Trim

End Details : Flange as per B.S.1560/ANSI-B16.5 Cl150

Test Pressure : CLS 150 - B.T.P.-30.59 kg/cm² Hyd. || S.T.P.-22.43 kg/cm² Hyd.

                            CLS 300 - B.T.P.-77.49 kg/cm² Hyd. || S.T.P.-56 kg/cm² Hyd.

Max. Temp. : CLS 150 - 260º C (500ºF) || CLS 300 - 425º C (800º F)

------------------------------------------------------------------------------------

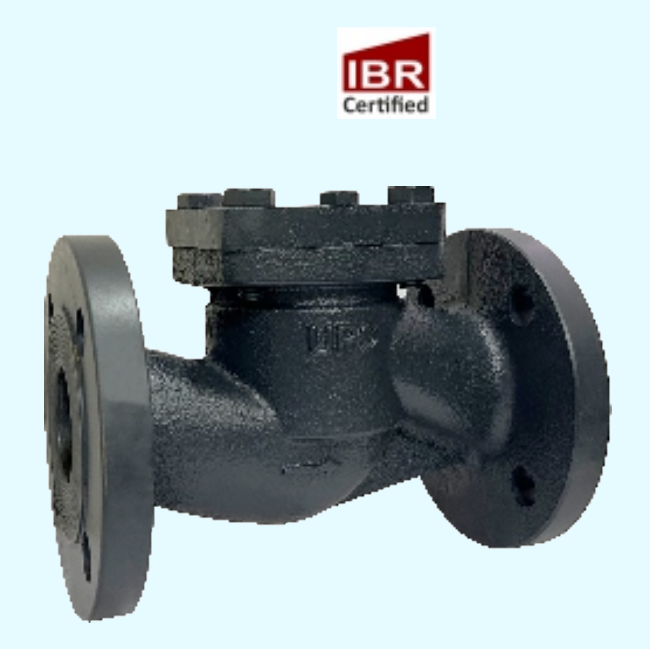

CAST IRON HORIZONTAL LIFT CHECK VALVE

Model no. : UPC-LCV-442

Size : 25 mm - 300 mm

Product Standard : PN 16 - BS 5152/Din 86251 || PN 40 -  BS5160/DIN2401

Product Description : PN 16 || PN 40 Flange End

Trim : 13% Cr. S.S. (AISI-410)

End Details : PN 16 - As per DIN 2533 PN 16 RF

PN 40 - Flanged as per B.S.4504: Part-1 Table 40/1/DIN-2545 PN 40 RF Drilled

Test Pressure : PN 16 - B.T.P.-26 kg/cm² Hyd. || S.T.P.-16 kg/cm² Hyd.

PN 40 - B.T.P.-60 kg/cm² Hyd. ||  S.T.P.-40 kg/cm² Hyd.

Max. Temp. : PN 16 - 220º C (428ºF) || CLS 300 - 425º C (800º F)

------------------------------------------------------------------------------------

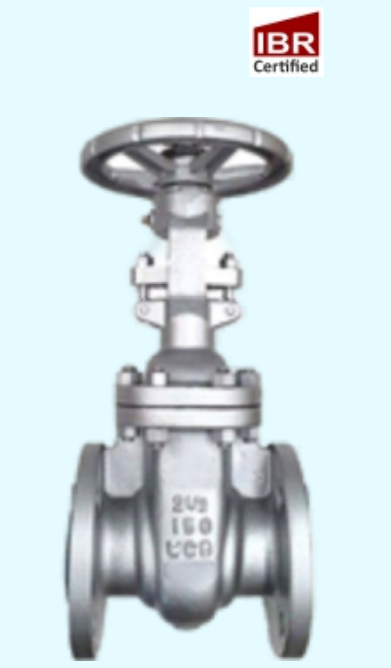

CAST CARBON STEEL GATE VALVE

Model no. : UPC-GTV-450

Size : 50mm-600mm

Product Standard : API 600/BS1414

Body Material Std. : Cast Carbon Steel(ASTM A216
Gr. WCB)

Product Description : Bolted Bonnet/OS & Y Type Rising Stem with backseat.

Trim : 13% Cr. S.S. (AISI-410)

End Details : Flanges as per BS1560 ANSI B16.5 ASA 150# || ASA 300#

Test Pressure : CLS 150 - B.T.P.- 30.59 kg/cm² Hyd. || S.T.P.-22.43 kg/cm² Hyd.

                            CLS 300 - B.T.P.-77.49 kg/cm² Hyd. || S.T.P.-56 kg/cm² Hyd.

Max. Temp. : CLS 150 - 260º C (500ºF) || CLS 300 - 425º C (800º F)

------------------------------------------------------------------------------------

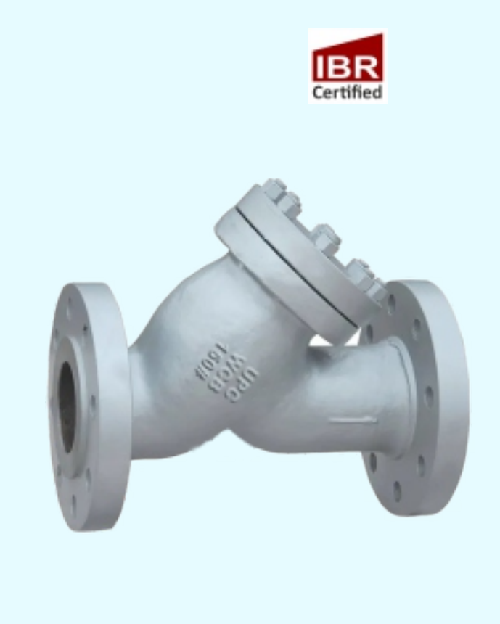

CAST CARBON STEEL WCB Y TYPE STRAINER

Model No. : UPC-YST-447

Product Standard : ASME B16.10

Body Material cum Std : ASTM A216 GR. WCB

Product Description : Bolted Bonnet with Drain Plug

End Details : Flange Ends to suit BS1560/ANSI B16.5#150 / #300 Raised Face

Test Pressure : B.T.P.- 30.59 kg/cm² Hyd.

Max. Temp. : 260º C (500º F)  ||  425º C (800º F)
